Panasonic DVD-LX8

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

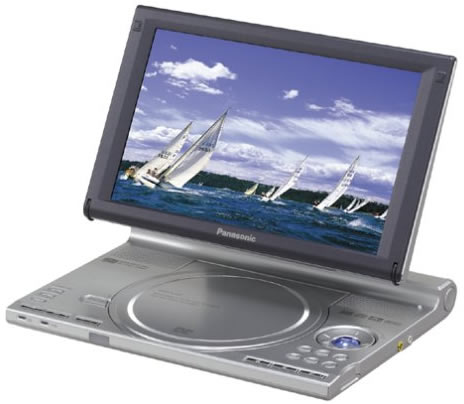

Panasonic DVD-LX8


Screen size:9 inches
Display type:LCD
Aspect ratio:16:9
MP3 playback:Yes (and WMA)
Progressive scan:No
Playback formats:DVD-Video (NTSC), DVD-Audio, DVD-R, DVD-RAM, red book CD, audio CD-R, CD-RW, MP3 CD, WMA CD, HighMAT
Region playback:Compatible only with discs coded for Region 1 and All Regions
Built-in speaker:Yes (2)
Video DAC:54 MHz/10-bit
Audio DAC:192 kHz/24-bit
Headphone jack:Yes (.125-inch)
Headphone volume control:Yes
Signal-to-noise ratio:60 dB (video)
Batteries:Built-in, rechargeable
Battery life:About 2.5 hours between charges
Aspect ratio control:Yes
Dialog enhancer:Yes
Multi-angle viewing:Yes (with applicable discs)
Black-level adjustment:Yes
Frame advance:Yes
Still/freeze frame:Yes
Forward/reverse play:Yes
High-Speed Smooth Scan:Yes (5 speeds up to x200)
Reverse-frame step:Yes
Slow motion:Yes
Audio outputs:1 minijack .125-inch stereo analog (left/right), 1 digital (Toslink optical)
Audio inputs:1 minijack .125-inch stereo analog (left/right), switchable with output
Video outputs:2 (S-video and minijack .125-inch composite-video)
Video inputs:1 (minijack .125-inch composite-video), switchable with output
Surround-sound output:Dolby Digital and DTS 5.1-channel passthrough
Simulated surround sound:Yes (Advanced Surround VSS)
In the box:DVD player, remote control, AC adapter, audio/video cables, rechargeable battery pack, user's manual, and warranty information
