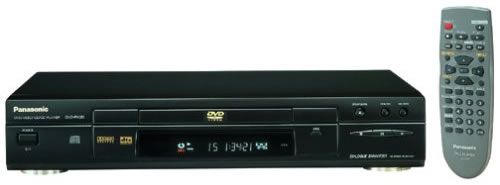

Panasonic DVD-RV20

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Panasonic DVD-RV20

Specifications

Changer type:Single-disc drawer
Disc capacity:1
Dolby Digital output:Yes
DTS (Digital Theater Systems) output:Yes
Dolby Digital decoding:No
Simulated surround mode:Yes
CD-R:No
CD-RW:No
DVD-R:No
DVD-RW:No
HDCD decoding:No
Video CD:Yes
THX certified:No
Aspect ratios:4:3 and 16:9 formats
Digital-to-analog audio converter:24-bit/96 kHz
Digital-to-analog video converter:10-bit
DVD dynamic range:102 dB
Horizontal image resolution:500 lines
Power consumption:14 watts
Signal-to-noise ratio (playback):115 dB
Video signal-to-noise ratio:65 dB
Analog-audio stereo outputs:1 pair
Coaxial digital-audio outputs:0
Headphone jack:No
Optical digital-audio outputs:1
Composite-video outputs:1
S-video outputs:1
RS-232 digital interface:No
Remote control type:Push button
Parental lock:Yes
Auto shutoff:Yes
Auto standby mode:Yes
Detachable AC cord:Yes
Direct track access:Yes
Disc advance speeds:5
DVD programming:Yes (CDs only)
Group filing:N/A
In the box:Panasonic DVD-RV20 DVD player, remote control, 2 AA batteries, RCA audio-video cable, user's manual
Introscan:Yes
MP3 compatible:No
Multilanguage display:English, Spanish, French
Progressive-scan video:No
Random/shuffle disc play:Yes
Repeat play:Yes
Resume play:Yes
Screen dimmer:Yes
Slow-motion speeds:5
Special effects:Dialogue enhancement, frame advance, freeze frame, marker function
Subtitle on/off button:Yes (remote only)
Video black-level control:Yes
Zoom:No
Width:17 inches
Height:3.25 inches
Depth:10.75 inches
Weight:6.4 pounds
