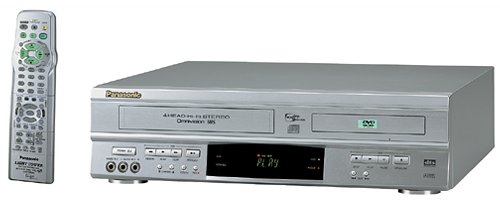

Panasonic PV-D4761

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Panasonic PV-D4761

Specifications

Includes DVD player:Yes
Includes VCR:Yes
Region playback (DVD):Compatible only with discs coded as Region 1 or Region Free
Progressive scan (DVD):No
Compatible formats:DVD-Video (NTSC), VCD, VHS videocassette, audio CD
Picture zoom:Yes
Repeat play (DVD):Yes (and VCD)
Random play (DVD):Yes
Aspect-ratio control (DVD):Yes
Track programming (DVD):Yes
Disc-to-tape recording:No
Picture enhancements:VCR: Digital Auto Picture (noise reduction), V-Lock control reduces picture jitter from damaged tapes
Heads (VCR):4
Stereo (VCR):Yes
Commercial skip (VCR):Yes
Indexing (VCR):Yes
Zero search (VCR):Yes
Auto clock set:Yes
Auto head cleaning (VCR):Yes
Auto play (VCR):Yes
Auto tracking (VCR):Yes (digital; manual tracking available)
Auto rewind (VCR):Yes
Auto repeat (VCR):Yes
NTSC tuner:Yes (181 channels)
MTS/SAP reception:Yes
Advance programming:Yes (with VCR Plus+ Silver)
One-touch recording:Yes
Slow motion:Yes
Multilingual menu:Yes (English, Spanish, French)
Remote control:Yes
Signal type:NTSC
Auto channel setup:Yes
Parental control:Yes (VCR lock)
Surround sound:Dolby Digital and DTS 5.1-channel pass-through to compatible AV surround receiver
Audio outputs:DVD/VCR: 2 stereo analog (left/right) RCA; DVD only: 1 optical digital-audio
Audio inputs:2 stereo analog (left/right) RCA
Video outputs:DVD only: 1 S-video, 1 component-video (selectable, either/or); DVD/VCR: 1 composite-video; tuner pass-through only: 1 RF
Video inputs:2 composite-video, 1 tuner/RF
Headphone jack:No
Front AV jacks:Yes
Power supply:AC 120V, 60 Hz
Power consumption:32 watts (standby: 4 watts)
Energy Star compliant:Yes
Width:16.94 inches
Height:4.625 inches
Depth:14.94 inches
Weight:15.2 pounds
In the box:DVD/VCR combo, a remote control, remote batteries, an RF coaxial video cable, a user's manual, and warranty information
