Panasonic TC-20LA2

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

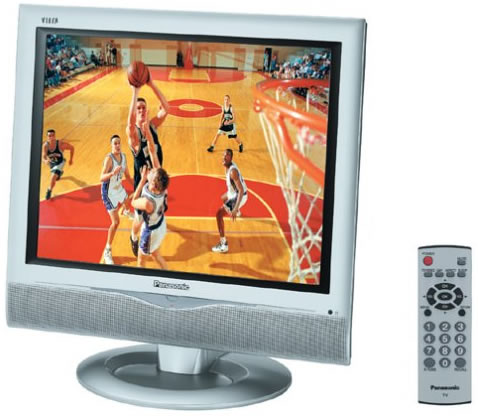

Panasonic TC-20LA2

Specifications

Screen size:20 inches
TV type:LCD
HDTV capable:Yes (EDTV, up to 480p)
Aspect ratio:4:3
3:2 pulldown detection:No
Speaker wattage per channel:6 (into 16 ohms, from 115 to 13,000 Hz, with 10 percent THD)
Number of speakers:2
Comb filter:Motion-adaptive 3D-Y/C
Noise reduction:Yes
Signal type:NTSC (480i, 480p)
Picture enhancements:LCD Artificial Intelligence
Picture modes:Video picture memory (Standard, Cinema, Vivid)
Input labeling:Yes
Input picture memory:Yes
Closed captioning:Yes
Multilingual menu:English/Spanish/French
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Yes
Sleep timer:Yes
Surround sound:No
VGA/SVGA input:0
Audio outputs:0
Audio inputs:5 stereo analog (left/right) RCA
Video outputs:0
Video inputs:5
Headphone jack:Yes (.125-inch)
Digital video input:0
Component video:1
Composite video:2
S-video:2
RF:0
Pixels:640 x 480
Contrast ratio:Up to 700:1
Brightness:500 cd/m2
Horizontal viewing angle:170 degrees
Response time:16 ms
Tilt angle:15 degrees up, 5 degrees down
Front AV jacks:No
Power supply:AC 120V, 60 Hz
Width:19.6 inches
Height:19.9 inches
Depth:3.5 inches
Weight:16.8 pounds
In the box:TV, remote control, remote batteries, a user's manual, and warranty information
