Pioneer DV-525 DVD Player

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

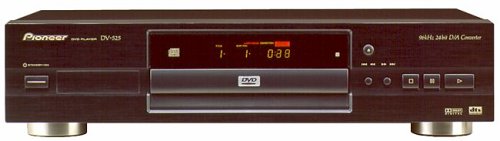

Pioneer DV-525 DVD - Front View

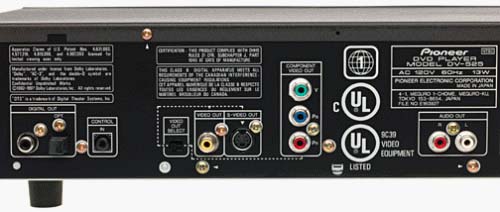

Pioneer DV-525 DVD - Rear View

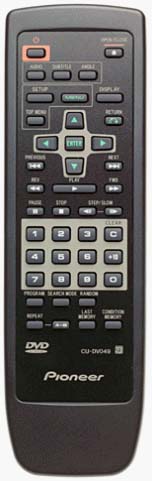

Pioneer DV-525 DVD - Remote Control

Product Description From Amazon.com:

Using Pioneer's exclusive Twin Wave Laser pickup, the Pioneer DV525 DVD player reads DVD, VCD, CD, or CD-R discs. This player offers 10-bit video processing, a 96 kHz sampling frequency, and a 24-bit resolution audio converter with 96 kHz, 24-bit digital output. The Pioneer DV525 DVD player also features Pioneer's exclusive Viter-Bi RF Decoding Process for improved DVD error correcting capability. A digital servo provides precise data reading, while automatic gain level adjustment minimizes jitter of individual discs.

The Pioneer D525 design include a resume function that lets you stop a movie and resume playback from where you left off; an onscreen display in English, Spanish, and French; and an ergonomic remote control. A memory function recalls setup conditions such as language, subtitle, aspect ratio, and mode for up to 15 discs. Other options include selectable background color and the choice of 48 kHz or 96 kHz output.

Technical Data

Digital audio outputs: Optical SPDIF, coaxial RCA
Digital-to-analog converters, video: 10-bit
Digital-to-analog converters, audio: 24-bit, 96 kHz
Analog video outputs: Component, S-video, composite
Analog audio outputs: 2-channel RCA
Other terminals: Control In
Video black-level control: Yes (cinema, animation, standard)
Audio dynamic range adjustment: Large, medium, small, off
Bitstream transmission rate display: Yes
Background screen color option: Blue, black
Headphone jack: No
Signal-to-noise ratio: 115 dB
Total harmonic distortion: 0.002 percent
Aspect ratio compatibility: 4:3, 4:3 letterbox, 16:9
Speeds: Slow motion-1/16, 1/8, 1/4, 1/2 in forward direction, single slow playback in reverse
Special effects: Freeze frame/field, frame advance
Search Modes: Title, chapter/track, time
Programmable: Yes
Repeat functions: Chapter/track, title, A-B segment
Resume play from stop: Yes
Parental lock: Yes
Remote control: Full function
Dimensions: 16.5 by 11.25 by 4 inches high
Weight: 6.25 pounds
