Samsung SC-M105

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

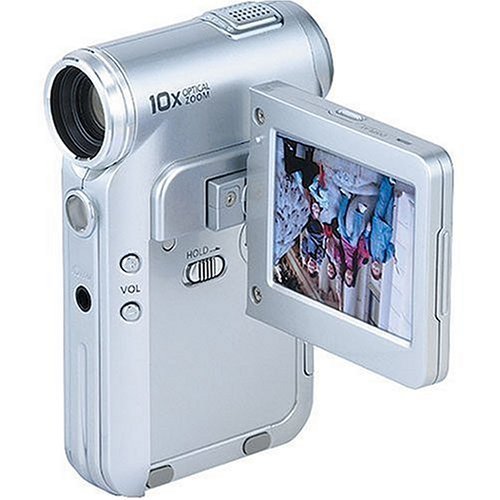

Samsung SCM105

Specifications

Video recording system:MPEG AVI format
Audio:22.05 KHz, 16 bit, stereo
MP3:Stereo playing
Voice:WAVE file record/play (8 Khz sampling, 16 bit, stereo)
Memory:Internal flash memory / memory stick / Memory stick pro
Recording time:HQ: 11 minutes, 23 seconds. Fine: 17 minutes, 4 seconds. Normal: 34 minutes, 8 seconds
CCD pixel:1/6 inch CCD, 680k (maximum)
Optical zoom ratio:10x
Lens:F=2.4 to approximately 24 millimeters. F1.8 to 2.4 millimeters
Minimum illumination:3.0 lux
LCD monitor:2.0 inch trans-reflective, 211k
Cradle connector:AV output, Power, USB
Operating temperature:0 to 40 degrees C
Operating humidity:10 to 80 percent
Power source:3.8V (li-polymer battery pack)
Power consumption:3w
Dimensions (W x H x D):58.8 x 92.7 29.1 millimeters
Weight:150 grams (including battery)
