Samsung HCN653W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

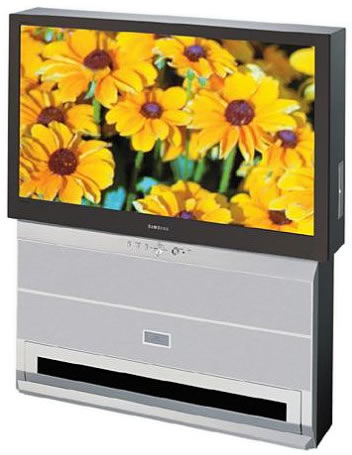

Samsung HCN653W

Specifications

In the box:TV, remote control, A two AAA batteries, and a user's manual
Screen size:65 inches
TV type:Rear-projection
HDTV capable:Yes
Aspect ratio:16:9
Speaker wattage per channel:15
Number of speakers:2
Comb filter:Yes (3-line digital)
Display system:Three 7-inch HD Fine Resolution CRTs with Fine Focus lenses
Invar shadow mask:No
Line doubling:Yes (Cinema Progressive Scan upconverts analog sources to 720p)
3:2 pulldown:Yes
Signal type:NTSC, ATSC (ATSC receiver not included)
Protective screen guard:Yes
Screen pitch:.52 mm
Picture modes:Standard, movie, or custom
Picture enhancements:Samsung Auto PerfectFocus, Bright Focus CRT, HD Fine Focus Lenses, HD Fine Pitch Screen, First Surface Mirror
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Yes (2 tuner, up to 13 windows)
Remote control:Yes (universal)
SAP:Yes
Sleep timer:Yes
Audio tone controls:BBE Sound with 5-band equalizer
Surround sound:Yes (simulated)
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right)
Audio inputs:3 stereo analog (left/right)
Video outputs:1 composite-video
Video inputs:11 (including DVI-HDTV)
Headphone jack:No
Component video:3 (all HD)
Composite video:3
S-video:2
RF:2
Color temperature control:Yes
Front AV jacks:No
Side AV jacks:Yes
Power consumption:230 watts
Length:29 inches
Width:60.2 inches
Height:62.5 inches
Weight:299.8 pounds
Shipping dimensions:64.4 x 73 x 34.6 inches
Shipping weight:361.6 pounds
