Samsung TX-N2036F

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

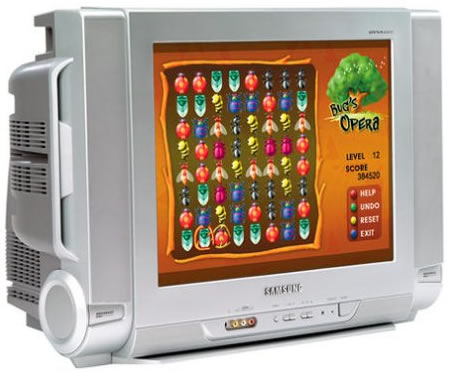

Samsung TX-N2036F

Specifications

In the box:TV, remote control, remote batteries, and user's manual
Color:Silver
Screen size:20 inches
TV type:CRT with DynaFlat anti-glare picture tube
HDTV capable:No
Aspect ratio:4:3
Speaker wattage per channel:10
Number of speakers:2
DynaSound audio system:Yes (ideal for gamers and compact home theater enthusiasts)
Comb filter:Yes (2-line digital)
Invar shadow mask:Yes
Horizontal resolution:500 lines
Scan velocity modulation:Yes
3:2 pulldown:No
Noise reduction:Yes
Signal type:NTSC
Protective screen guard:No
Black-level expansion:Yes
White-peak limiter:Yes
Auto channel setup:Yes
Channel labeling:Yes
Closed captioning:Yes
Mute:Yes
Picture modes:4 (Standard/Dynamic/Movie/Custom, with user adjustable brightness, contrast, sharpness, color, and tint)
Picture enhancements:Auto Kine Aging Bias (regulates the set's white balance)
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Universal
Remote Surf timer:Yes (returns TV to original channel so other channels can be browsed during commercial breaks)
SAP:Yes
Self-diagnostic system:Yes (facilitates proper setup)
Auto clock set:Yes
Sleep timer:Yes (and on timer)
Audio tone controls:4 preset audio modes: Standard, Music, Movie, Speech, plus 1 custom setting; Turbo Sound boosts high and low frequencies
Surround sound:Yes
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right) RCA, fixed-level
Audio inputs:3 stereo analog (left/right) RCA
Video outputs:1 (composite-video)
Video inputs:6
Headphone jack:Yes (.125-inch, front panel)
DVI-HDTV:0
Component video:1
Composite video:3
S-video:1
RF:1
Color temperature control:Yes
Front AV jacks:Yes
Side AV jacks:No
Sound leveler system:Yes
Component linking:No
Power supply:AC 120V, 60 Hz
Power consumption:90 watts (2.6 watts standby)
Energy Star compliant:Yes
UPC:036725220041
Width:25.9 inches
Height:18.6 inches
Depth:19.2 inches
Weight:56.2 pounds
