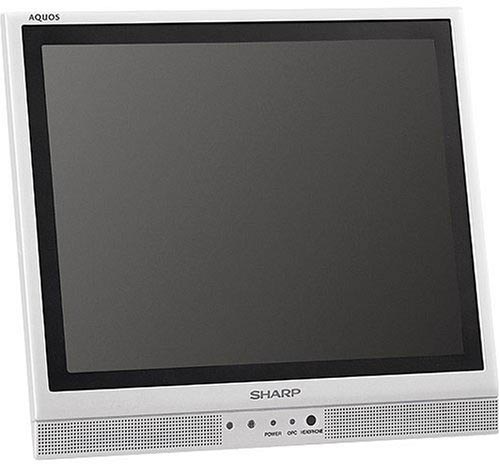

Sharp LC-15S1US

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

Sharp LC 15S1US

Specifications

Screen size: 15 inches
TV type: Active-matrix (a-si TFT) LCD with Advanced Super View panel
HDTV capable: No (EDTV, up to 480p)
Aspect ratio: 4:3
3:2 pulldown detection: No
Speaker wattage per channel: 2.1
Number of speakers: 2
Flash-memory port: No
Includes radio: No
Comb filter: No
Line doubling: No
Noise reduction: No
Signal type: NTSC/PAL/SECAM
Black-level expansion: No
Picture-in-picture (PIP): No
Remote control: Yes
SAP: Yes
Surround sound: No
VGA/SVGA input: 0
Audio outputs: 0
Audio inputs: 3 stereo analog (left/right) RCA
Video outputs: 0
Video inputs: 6
Headphone jack: .125-inch (front panel)
Digital video input: 0
Component video: 1
Composite video: 2
S-video: 2
RF: 1
Monitor: No (includes PLL NTSC tuner)
Pixels: 640 x 480
Contrast ratio: 500:1
Brightness: 430 cd/m2
Dot pitch: Information not available
Horizontal viewing angle: 170 degrees
Vertical viewing angle: 170 degrees
Response time: Information not available
Lamp life: 60,000 hours
Color temperature control: No (fixed at 8,000 degrees K)
Front AV jacks: No
Side AV jacks: No
Sound leveler system: No
Wall mountable: Yes (VESA 100mm standard mounting pattern)
Power supply: 110V to 240V, 50/60 Hz
Power consumption: 41 watts (standby
Optional accessories: Various mounting brackets, including Sharp's AN-PSMARM and AN-PUCM
Energy Star compliant: Yes
Width: 14.3 inches
Height: 12.96 inches (with stand), 12.75 inches (without stand)
Depth: 6.03 inches (with stand), 2.33 inches (without stand)
Weight: 9.3 pounds (with stand), 8.6 pounds (without stand)
In the box: Flat-panel LCD TV, table stand, remote control, 2 AAA batteries, user's manual, and warranty information

Note: The black version of this model is the LC-15S1US.
