Sony DCR-TRV130

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

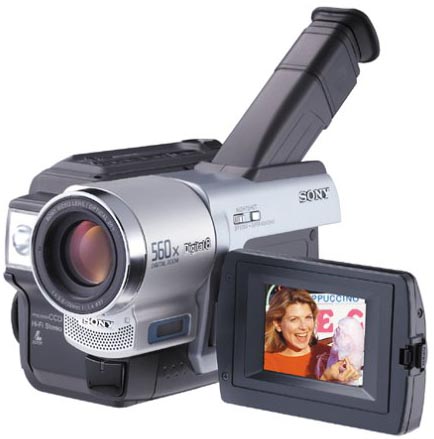

Sony DCR TRV130 - Front View

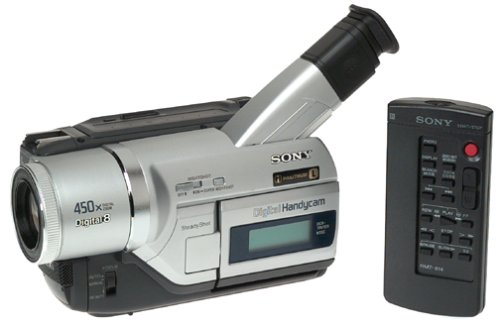

Sony DCR TRV130 - Rear View

Specifications

Video format: Digital8
Audio: PCD digital audio
Progressive scan CCD: No
Flying erase heads: No
Maximum CCD resolution: 460,000 pixels
CCD size: .25 inches
Eyepiece viewfinder: Yes
LCD screen size: 2.5-inches
LCD swivel: Yes
Aperture: F/1.4-2.9
Filter diameter: 37mm
Optical zoom: 20x
Digital zoom: 28x
Programmed exposure modes: Portrait, Beach and Ski, Sport Lesson, Landscape, Spotlight, Sunset and Moon, and Low Lux
Autolight: No
Black and white: Yes
Sepia: Yes
Solarized: Yes
Image stabilization: Yes
Infrared capability: Yes
Remote included: Yes
Digital camera capability: Yes
Preset titles: No
Custom titling: No
Fade options: Fade to Black, Mosaic, Overlap, Wipe, Monotone, Bounce and Random Dot
Special effects: Mosaic, Solarization, Monotone, Sepia, Negative Art, Pastel, Slim, and Stretch
Motion sensor: No
Audio sensor: No
IEEE1394 output: Yes
Connections: IEEE1394, A/V mini
S-Video output: No
Battery type: NP-F330 InfoLithium
Included in box: DCR-TRV130, AC-L10 AC adapter, NP-F330 InfoLithium battery, wireless remote control RMT-814, stereo A/V cable, lens cap, shoulder strap
Dimensions (WxHxD): 4.13 inches x 4.38 inches x 9.13 inches
Weight: 2 lbs.
