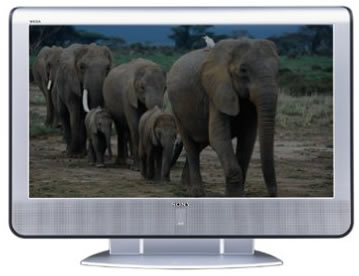

Sony KE-42M1

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Sony KE 42M1

Specifications

Screen size:42 inches
TV type:Gas-plasma
Proprietary Plasma Panel Driver LSI:Yes
HDTV capable:Yes
Aspect ratio:16:9
3:2 pulldown detection:Yes (CineMotion reverse 3:2 pulldown technology)
Memory port:Yes (Memory Stick; compatible with JPEG photos, MP3 music files, and MPEG-1 video)
Speaker wattage per channel:10
Number of speakers:2
Signal type:NTSC, decoded ATSC (native 480p plus 720p and 1080i scaled for 480p display)
Picture enhancements:Digital Reality Creation circuitry, Direct Digital II Circuitry (DDC)
Picture freeze:Yes
Auto channel setup:Yes
Favorite channel:Yes
Channel Fix:Yes
Input labeling:Yes
Channel coverage: VHF 2-13, UHF: 14-69, CATV: 1-125
Closed captioning:Yes
Mute:Yes
Last-channel recall:Yes
Multilingual menu:English, Spanish, French
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Yes (universal)
SAP:Yes
Sleep timer:Yes
Clock timer:Yes
Audio tone controls:Electronic treble, bass
Audio balance:Yes
Surround sound:TruSurround SRS (simulated surround sound from any 2 speakers)
VGA/SVGA input:0
Audio outputs: 1 stereo analog (left/right) RCA: fixed-/variable-level
Audio inputs:5 stereo analog (left/right) RCA, 1 center-speaker input (speaker-level with clip-type terminals, 180 watts/6 ohms max)
Video outputs:0
Video inputs:8
Headphone jack:Yes (.125-inch)
Digital video input:1 (HDMI)
Component video:1
Composite video:3
S-video:2
RF:1
Pixels:852 x 480
Horizontal viewing angle:160 degrees
Vertical viewing angle:160 degrees
Front AV jacks:Yes (including S-video)
Side AV jacks:No
Sound leveler system:Yes (SteadySound)
Wall mountable:Yes
Power supply:AC 120V, 60 Hz
Power consumption:370 watts (standby: less than 1 watts)
Energy Star compliant:Yes
Optional accessories:Wall-mount bracket SU-PW2
Width:42.32 inches
Height:32.52 inches (with stand), 29.53 inches (without stand)
Depth:12.28 inches (with stand), 4.33 inches (without stand)
Weight:99.19 pounds (with stand), 87.17 pounds (without stand)
