TiVo R240060

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Product Description from Amazon:

TiVo DVRs record television programming directly to a digital hard drive. This Series2 TiVo offers 60 hours of recording time.

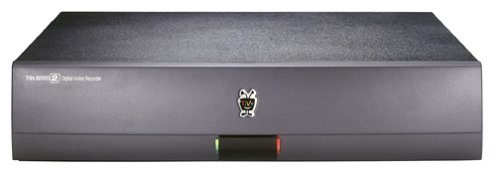

TiVo R240060 - Front View

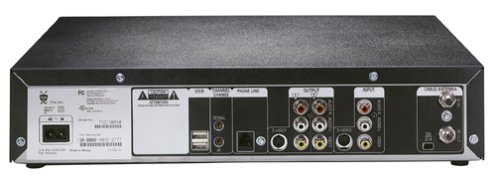

TiVo R240060 - Rear View

Specifications

Hard-drive storage capacity: 60 GB
Maximum recording time: 60 hours
Archiving: Yes
Channel-block capability: No
Auto clock set: Yes
Buffer length: 30 minutes
Built-in satellite receiver: No
Progressive scan: No
Closed captioning: Yes
Reception: NTSC
Records favorites: Yes (and wish list)
Custom channels: No
Advance programming: 3 days
Factory reset: Yes
Favorite channel memory: Yes
Games included: No
Infrared port: No
Instant messaging: Yes
Instant replay time: 8 seconds
Interactive television: Yes (capable)
Internet capability: No
Keyword search: Yes
One-touch recording: Yes
Picture-in-picture (PIP): Yes (and tiling)
Program recommendations: Yes
Number of programs recorded at once: 1
Recording conflict warning: No
Serial port: 0
Slow motion: Yes
Analog phone jack: Yes
Composite video inputs: 1
Composite video outputs: 2
Audio inputs: 1
Audio outputs: 2 (stereo analog, left/right)
S-video input: 1
S-video output: 1
RF coaxial inputs: 1
RF coaxial outputs: 1
USB port: 2
IR blaster: Yes (via included cable)
Universal remote included: Yes
Web-based control: No
Live TV buffering: Yes
Onscreen magazine: No
Pause live TV: Yes
Program information: Yes
Total days of programming: 2 weeks (looking out)
Dimensions (WxHxL): 15 inches x 3 inches x 11.5 inches
Weight: 8 pounds
In the box: TiVo PVR, user's manual, 1 stereo analog audio/video interconnect, 1 RJ-11 phone "Y" splitter, 1 dual IR blaster cable, 1 AC power cord, 1 25-foot RJ-11 telephone cable, 2 AA batteries, 1 RG-6 coaxial cable, 1 DB-9 serial cable
