TiVo TCD-540080

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

Product Description from Amazon:

TiVo's Series2 DVR delivers plenty of recording capacity in addition to offering entertainment services like digital music, digital photos, remote scheduling, and hassle-free favorites recording. TiVo DVRs record television programming directly to an onboard digital ATA/IDE hard drive.

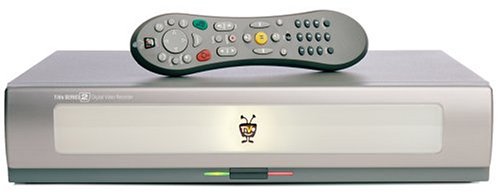

TiVo TCD 540080 - Front View

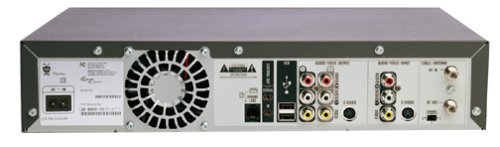

TiVo TCD 540080 - Rear View

Specifications

Model: TDC540080
Hard-drive: 80 GB ATA/IDE
Maximum recording time: 80 hours
Buffer length: 30 minutes
Built-in satellite receiver: No
Progressive scan: No
Closed captioning: Yes
Reception: NTSC
Records favorites: Yes (and wish list)
Custom channels: No
Advance programming: 3 days
Channel-block capability: No
Archiving: Yes
Auto clock set: Yes
Favorite channel memory: Yes
Games included: No
Infrared port: No
Instant messaging: Yes
Instant replay time: 8 seconds
Interactive television: Yes (capable)
Internet capability: Yes (remote scheduling ability when using the TiVo Home Media Option)
Keyword search: Yes
Movies on demand: Possibly in the future
One-touch recording: Yes
Picture-in-picture (PIP): Yes (and tiling)
Program recommendations: Yes
Number of programs recorded at once: 1
Recording conflict warning: No
Serial port: 0
Slow motion: Yes
Analog phone jack: 1 RJ-11
Composite video inputs: 1
Composite video outputs: 2
Headphone jack: 2
Audio inputs: 1
Audio outputs: 2
S-video input: 1
S-video output: 1
RF coaxial inputs: 1
RF coaxial outputs: 1
USB port: 2
IR blaster: Yes (via included cable)
Universal remote included: Yes
Web-based control: No
Live TV buffering: Yes
Onscreen magazine: No
Pause live TV: Yes
Program information: Yes
Total days of programming: 2 weeks (looking out)
Power input: AC 120V, 60 Hz
Power consumption: 40 watts
Dimensions (WxHxD): 15 inches x 3 inches x 11.5 inches
Weight: 8 pounds
In the box: TiVo DVR, user's manual, 1 stereo analog audio/video interconnect, 1 RJ-11 phone "Y" splitter, 1 dual IR blaster cable, 1 AC power cord, one 25-foot RJ-11 telephone cable, 2 AA batteries, 1 RG-6 coaxial cable, 1 DB-9 serial cable, a user's manual, and warranty information
