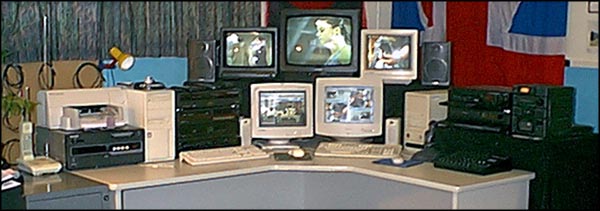

This illustration outlines a system which incorporates both consumer-level and professional equipment.
It includes facilities for:
- Editing home movies
- Creating television productions
- Manufacturing CDs
- Authoring and uploading internet material
- Internet videoconferencing

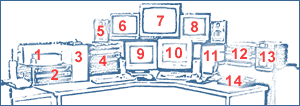

| 1 | Colour Printer | 8 | Edit PC video monitor |
| 2 | Panasonic AJ-D650 DVCPro VT machine | 9 | Internet PC monitor |
| 3 | Internet PC mini-tower | 10 | Edit PC monitor |
| 4 | 2 x VHS VCRs, CD player, audio processor | 11 | Edit PC tower |
| 5 | Audio monitor (2) | 12 | 2 x S-VHS VT machines |
| 6 | Preview monitor | 13 | Stereo monitor system |
| 7 | Line monitor | 14 | 8-channel audio mixer |
