Shure
Auxpander
Suggested Applications:
- Suggested Applications
- Personal Monitor Mixing
- Multi-track recording
- Monitoring
- Track combining
- Stereo effects sends
- Mix-minus matrixing
Product
Description From Shure:

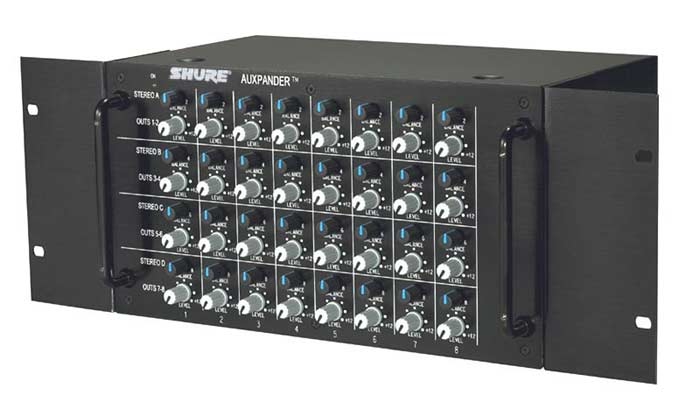

AuxPander is an insertable, 8 x 8, analog mixing matrix designed to expand the auxiliary output capabilities of any standard mixing console. Compact and transportable, the AuxPander is capable of mixing eight input signals and distributing them to any of the eight available outputs, in any combination, and at any volume level.
Specifications
| Frequency Response | 20Hz to 20KHz, ± 1dB |
| Dynamic Range | 100dB |
| Maximum Input Level | +21dBu |
| Nominal Input Impedance | 10k ohms (all inputs) |
| Channel Gain | +12dB (LEVEL pot full CW); 0dB (LEVEL pot center) |
| Direct Inputs | Balanced inputs (tip positive) |
| Overall Dimensions | 175 mm (H) x 330mm (W) x 218 (D) 6 7/8" (H) x 13" (W) x 8 9/16" (D) |
| Weight | 5.4 Kg (12lbs.) |
