- Eight balanced mic-line input channels (Phoenix block connectors)
- One unbalanced 1/4" aux input level control
- Eight unbalanced 1/4" direct line level outputs
- One balanced master line/mic level output (Phoenix block connector)
- Selectable 48V phanton power per channel
- Level selectable peak output limiter
- Full rack width (single rack height)
Product Description From Shure:

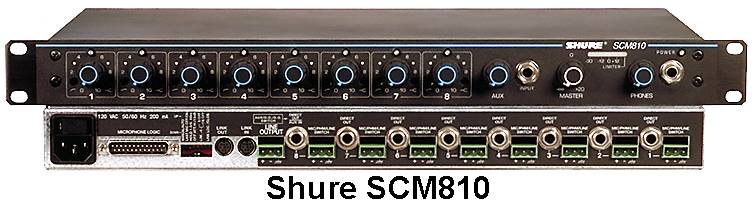

This eight-channel automatic mixer features Shure's patented IntelliMix®, which activates only microphones being addressed, minimizing poor audio caused by multiple open microphones. The SCM810 is designed specifically for installed sound applications.
Features include adjustable EQ per channel, 48 V phantom power, active balanced microphone - or line-level inputs, line-level outputs, highly RF resistant chassis and circuitry, complete logic control of microphone activation, linking capacity for up to 400 microphones, with an internal power supply. 120/230 Vac power.
