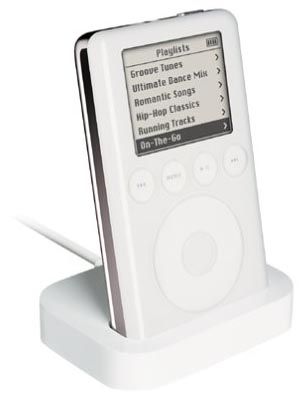

Apple 15 GB iPod M8946LL/A
User Manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!
If you're happy with the manual, a small donation would be very much appreciated. Thanks!
Features
- Discontinued by manufacturer, replaced by model #M9244LL/A
- Mac and Windows compatible; FireWire and USB 2.0 interface for fastest digital transfer available
- Equipped with a range of built-in utilities and games
- More than 8 hour battery life on a 3 hour charge (1-hour fast charge to 80% capacity)
- Features redesigned and backlit navigation; includes earbud headphones, AC adapter, FireWire cable, 4-pin-to-6-pin FireWire adapter
Specifications
| Total included memory: | 15 GB |
| Audio playback time (near CD quality): | 3,700 songs in AAC format; 8 hours when fully charged |
| Onboard memory: | 15 GB |
| Included memory cards: | None |
| Compatible memory type(s): | None |
| Memory expansion slots: | None |
| MP3 playback: | Yes |
| G2 playback: | No |
| WMA playback: | No |
| Audible content playback: | Yes |
| Add digital audio standards: | Mac |
| Display: | 2-inch (diagonal) grayscale LCD with LED backlight |
| FM tuner: | No |
| Voice recording: | No |
| Battery status display: | Yes |
| Color: | No |
| Track programming: | Yes |
| Random play: | Yes |
| Repeat: | Yes |
| Forward/reverse: | Yes |
| Bookmark: | Yes |
| Hold: | Yes |
| Preset EQ curves: | 20 Equalizer settings |
| AC adapter: | Yes |
| Car adapter: | Optional |
| Belt clip: | Yes |
| Carrying case: | Yes |
| Batteries: | Built-in rechargeable lithium ion battery (630 mAh) |
| Headphones: | Earbud-style headphones with 18-mm drivers using Neodymium transducer magnets |
| Software: | Mac |
| Interface: | Stores data in FireWire or USB 2.0 disk mode |
| Battery life: | 8 hours when fully charged; 2 weeks standby when fully charged |
| In the box: | iPod, earbud headphones, AC adapter, FireWire cable, 4-pin-to-6-pin FireWire adapter |
| Compatibility: | Mac and PC |
| PC system requirements: | PC with built-in FireWire or USB 2.04, or Windows-certified FireWire or USB 2.0 card; Windows Me, Windows 2000 or Windows XP Home or Professional; CD includes MUSICMATCH Jukebox Plus 7.5 software |
| Mac system requirements: | Apple computer with built-in FireWire port; Mac OS X v10.1.5 or later (Mac OS X 10.2 or later recommended); CD includes iTunes for Mac OS X |
| Width: | 2.4 in |
| Height: | 4.1 in |
| Depth: | 0.62 in |
| Weight: | 5.6 oz (158 g) |
