Canon Elura 65

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Product Description From Canon...

Elura camcorders feature Canon's DV Photo Plus. DV Photo Plus unleashes the full digital imaging power of your Canon Megapixel camcorder, promising a superior level of clarity, color and excellence for video and photos. The Elura 65 camcorder comes with a host of features guaranteed to enhance your home movies and digital photos. Canon's DV Photo Plus achieves premium-quality video and photos by combining four key technologies: Genuine Canon Optics, DIGIC DV Image Processor, Megapixel CCD Image Sensor, and Print and Share. DV Photo Plus - DV Photo Plus unleashes the full digital imaging power of your Canon Megapixel camcorder, promising a superior level of clarity, color and excellence for video and photos. Canon's DV Photo Plus achieves premium-quality video and photos by combining four key technologies Genuine Canon Optics - Canon MiniDV camcorders feature high-precision lenses designed specifically for their use. Each camcorder has a unique lens that matches its CCD for optimal quality. Canon's camcorder lenses feature the same distinguished quality found in 35mm cameras and broadcast TV cameras.

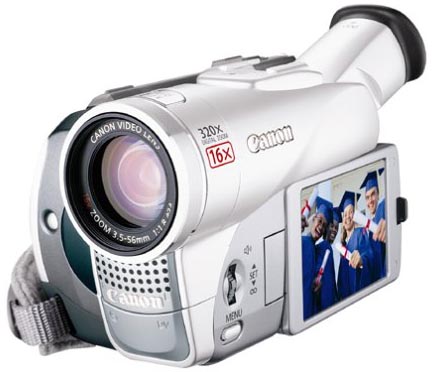

Canon Elura 65

Canon Elura 65 - Left View

Specifications

Video format: MiniDV
Power Supply: 7.4 V DC
Power Consumption: 2.6W using viewfinder, 3.3W using LCD
TV system: NTSC
Video recording system: 2 rotary heads
Image sensor: 1/4.5-inch CCD, approx 1.33 MP
Tape format: MiniDV
Max. recording time: SP: 80 min, LP: 120 min
Fast forward/rewind time: 2 min. 20 sec. (60 min. cassette)
Lens: f-3.5-56, f/1.8-3.3, 16x zoom
Focusing system: TTL Autofocus
Min. focusing distnace: 3 ft. 3 3/8 in.
Max. shutter speed: 1/2000
Min. illumination: 1.8 lx (using night mode)
Recommended illumination: 100 lx
Viewfinder: 0.33-inch TFT color (approx. 113,000 pixels)
LCD screen: 2.5-inch TFT color (approx. 123,000 pixels)
Microphone: Stereo condenser
DV terminal: 4-pin connector
Operating temperature range: 32-104 degrees F (0-40 degrees C)
Dimensions: 3.1 x 2.9 x 5.1 inches
Weight: approx. 1.1 lbs.

User Manual

A free operating manual is available in PDF format—see the link at the top of this page.
