Canon GL2 MiniDV Camcorder

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

  • Professional-quality MiniDV camcorder and still camera with 3 CCD lens
  • 20x optical zoom lens (digital zoom to 100x) and image stabilizer
  • 2.5-inch LCD with 270-degree rotation
  • Save to MiniDV tape or MMC/SD card (8 MB SD card included)
  • Record for up to 65 minutes on one battery charge

Product Description From Canon:

The Canon GL2 (like its predecessor, the GL1, and its big brother, the XL1) is helping to blur the line between consumer and professional video equipment. This camcorder borrows most of those cameras' professional-quality components and puts them into a more compact, affordable camera. Though it's small enough to carry around and doesn't cost much more than a top-of-the-line consumer camcorder, the GL2 produces such high-quality results that it could be used as a broadcast video camera.

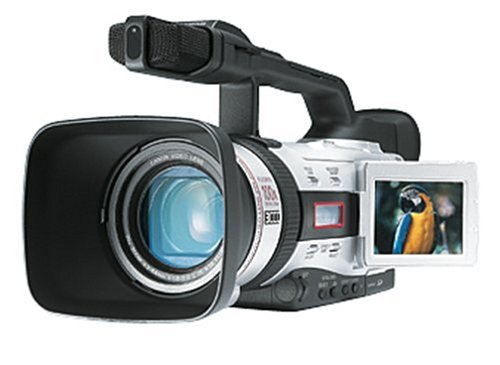

Canon GL2

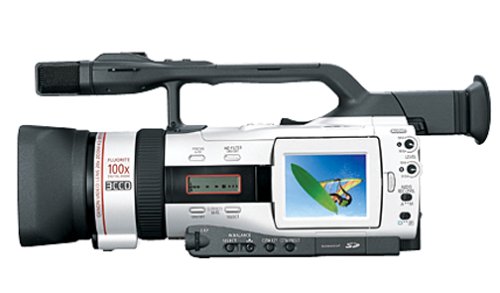

Canon GL2 - Left View

Specifications

Video format: MiniDV
Power supply (rated): 7.2 V DC
Power consumption: 4.8 W (using viewfinder), 5.7 W (using LCD screen)
Television system: EIA standard (525 lines, 60 fields) NTSC color signal
Video recording system: 2 rotary heads, helical scanning systemDV system (Consumer digital VCR SD system)Digital component recording
Audio recording system: PCM digital sound: 16 bit (48kHz/2ch), 12 bit (32kHz/4ch)
Image sensor: 3 CCD 1/4" Pixel Shift (charge coupled device) 410,000 pixels (380,000 effective pixels)
Tape format: Videocassettes bearing the MiniDV mark
Tape speed: SP: 3/4 ips (18.81 mm/sec.), LP: 1/2 ips (12.56 mm/sec.)
Maximum recording time (with an 80-min. cassette): SP: 80 minutes (with an 80-min. cassette); LP: 120 minutes (with an 80-min. cassette)
Fast forward/rewind time: 2 min. 50 sec. (with a 60 min. cassette)
Focusing system: TTL autofocus, manual focusing possible
Minimum focusing distance: 3 feet 3 3/8 inches (1 m) - 3/8 inches (1 cm)on maximum wide angle
Maximum shutter speed: 1/15,000 seconds
Minimum illumination: 6 lux
Recommended illumination: More than 100 lux
Filter diameter: 58 mm
Viewfinder: 0.44 in., color LCD (approx. 180,000 pixels)
LCD screen: 2.5 in. measured diagonally (6.4 cm), 200,000 pixels (approx.)
Microphone: Stereo electret condenser microphone
DV terminal: Special 4-pin connector (based on IEEE 1394)
Video terminal: 1 Vp-p/75 ohms unbalanced
S-video terminal: 1 Vp-p (Y signal), 0.286 Vp-p (C signal)
Audio terminal: -10dBV, less than 3 kohms, unbalanced
Operating temperature range: 32 - 104º F (0 - 40º C)
Dimensions: 4 5/8 x 5 3/8 x 12 inches (118 x 136 x 306 mm)
Weight: 2 pounds 7 1/2 ounces (1.25 kg)
Recording media: MultiMedia Card, SD Memory Card
Image format: Design rule for Camera File system (DCF)
Print order format: Digital Print Order Format (DPOP)
