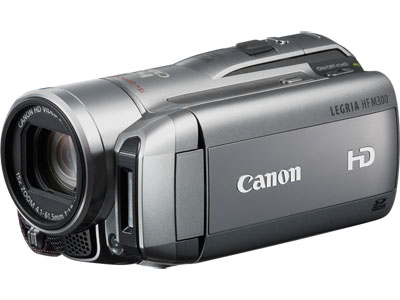

Canon Legria HF M300 Full HD Video Camera

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Product Description:

Packed with all the necessary features the promising videographer would need, the LEGRIA HF M300 encompasses FULL High Definition video recording coupled with an easy to use 2.7 inch Touch LCD Screen. The genuine Canon HD Camera System and Powered IS ensures all those precious memories will be relived time after time.

Canon Legria HF-M300 Video Camera



Format Type: Flash - SD / SDHC
Sensor: 1/4-inch, total pixel count of approxamately 3.89 Megapixel Canon HD CMOS sensor
Image Processor: DiG!C DV III
Video Data: AVCHD 1080/50i. 1080/25P (Maximum AVCHD 24Mbps)
Recording Modes: MXP 24Mbps / FXP 17Mpbs / XP 12Mbps / SP 7Mbps / LP 5Mbps
Total Pixels: 3.89 Megapixels
Still Image: 3.11 Megapixels
Real Widescreen 16:9: 2.99 Megapixels
Optical / Digital: 15x / 300x
Focal Length: 4.1 - 61.5 mm
Maximum Aperture: f/1.8 to f/3.2
Minimum Focusing Distance: 10mm (wide angle)
Shutter Speed: 1/2-1/2,000 second
Image Stabilizer: Optical system (Dynamic IS provided, vector detection)
Lens Cover: Built-in Automatic
AF System: Hi-Speed Instant Auto Focus , Normal AF (Touch and Track available)
Focusing Range: Auto / Manual
Light Metering Method: Evaluative / Centre-weighted average / Spot metering
Exposure Compensation: 12 steps via joystick
White Balance Mode: Daylight, Shade, Cloudy, Tungsten, Fluorescent, Fluorescent H
Min Illumination: 0.4 Lux (Low Light Mode)
Low Light Mode: Yes (1/2 sec)
Flash: Yes
Video Light: Yes
View Screen / Pixels: Touch Widescreen 2.7 / 211,000 Wide View Angle & Wide colour range
Viewfinder (Colour): -
AE Program Modes: Auto / P / Av / TV / SCN / CINE progressive 25P
Scene Modes: Portrait / Sports / Snow / Beach / Sunset / Night / Low Light / Spotlight / Fireworks / Underwater / Surface
Effects: Black & White / Sepia
Fades: Auto Fade / Wipe (Movie only)
Audio Data: Dolby Digital AC-3 2ch (5.1-ch Supported)
Audio Level Metering: Manual audio level VR metering & control with adjustment via LCD
Wind Screen: Auto / Off
Capture Size: 3.11 Megapixels
Memory Card Type: SDHC / SD
Still Image Resolution: 2304x1296, 2100x1575, 1600x1200, 640x480
Still Shooting Functions: Auto Exposure Bracketing / High Speed Continuous Shooting / 9-point AiAF
Battery (standard): Average 1hr 45min
Charging Time: 150 min
Quick Start/Power Save: Yes, linked with LCD
Built-in Charger: Yes
Terminals: USB 2.0 Hi Speed / mini HDMI / Component output / AV output / Microphone / Headphone/ Mini advanced shoe (RA-V1 supported)
Operating Platforms: Canon photo application software - PC: Windows XP SP2/SP3, Vista (including SP1/SP2), Windows 7; Mac: OS X 10.4 to 10.6. Pixela ImageMixer 3 SE Software - PC: Windows XP SP2/SP3, Vista SP1/SP2, Windows 7
Self Timer: 10 sec / Remote 2 sec
Search: Calendar / Timeline / Date / Face
Dimensions W x H x D: 68 x 60 x 123mm
Weight excluding battery: Approximately 320g
