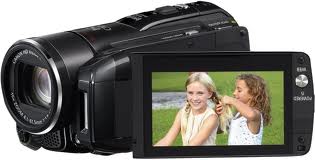

Canon HF M36 Video Camera

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Product Description:

Make Full HD movies the way you want with the stylish, compact LEGRIA HF M36. Dual Flash Memory – with 8GB internally – is supplemented by an SDHC memory card slot. Smart Auto makes great video easy.



Canon HF M36 Video Camera



Specifications

Video System
Recording Medium: Dual Flash Memory (8Gb internal + SDHC card slot) with Relay Recording (internal memory to card)
Max Recording Time: Internal memory: 3hrs 00mins
32Gb SDHC card: 12hrs 15mins
CCD
Type: 1/4 type CMOS
Total pixels: 3.89 megapixel
Effective Pixels: MOVIE: 2.99 megapixels
STILL: 3.31 megapixels (4:3 mode)
Filter: RGB Primary Colour Filter
Lens
Advanced Zoom: 18x
Optical Zoom: 15x
Digital Zoom: 300x
Digital Tele-Converter: No
Focal Length: 4.1-61.5mm
35mm Equivalent Focal Length: MOVIE: Approx 39.5-711 mm
STILL: Approx 39.5-592.5 mm
Maximum Aperture: f1.8 to f3.2
Minimum Focusing Distance: 10mm
Image Stabilizer: Dynamic Optical Image Stabilizer;
Powered Optical Image Stabilizer mode
Filter Diameter: 37mm
Wide Attachment: YES (optional WD-H37 II)
Image Processor
Image Processor: DIGIC DV III
Face Detection Technology: Yes
LCD
Screen Size: 6.8cm (2.7") widescreen Multiangle Vivid LCD
Pixels: 211,000 pixels
Touch-Screen LCD: Yes
Manual Adjustment: Brightness, backlight
Temporary Underscan: No
Minimum Illumination
Minimum Lux. Approx. 0.4 lux (Low Light Mode)
Night Mode: Yes
Auto Gain Control Limit Adjustment: Yes
Focus
Auto / Manual: Yes / Yes
Control: AUTO: Face Priority AF/Instant AF/TV AF
MANUAL: Touch panel
Manual Focus Assist: YES (Magnification, Face Assist)
AE Mode
Smart AUTO : YES (31 scene)
Program AE: 16, AUTO, P, Av, Tv, CINE, Portrait, Sports, Snow, Beach,Sunset, Night, Low Light, Spotlight, Fireworks, Underwater, Surface
Zebra: No
Backlight compensation
Backlight Compensation: Yes
White Balance
Type: TTL
Auto: Yes
Set/Preset: Yes (Daylight, Shade, Cloudy, Tungsten, Fluorescent, Fluorescent H)
Shutter Speed
Maximum: 1/2000th sec.
Slow 1/2 sec.
Digital Effect
Fade: Auto Fade , Wipe
Effect: Black & White, Sepia
Image Quality Adjustment
Image Effects: Vivid, Neutral, Low Sharpening, Soft, Skin Detail, Custom
Custom Functions: Brightness, Contrast, Sharpness, Colour Depth
Still Image
Capture Image Size: 2304 x 1296, 2100 x 1575, 1600 x 1200, 848 x 480, 640 x 480
Continuous Shooting Mode: Yes (Normal and High-speed)
Auto Exposure Bracketing: Yes
Simultaneous Photo Recording: Yes
Selecting AF Frame Function: Yes
Histogram: Yes
Photo Button: Yes
Photo Burst: Yes
Self Timer
Self Timer: 10 sec
2 sec with wireless remote
Recording Mode
LP Mode (5 recording quality modes): MXP: 1920x1080, 24Mbps
FXP: 1920x1080, 17Mbps
XP+: 1440x1080, 12Mbps
SP: 1440x1080, 7Mbps
LP: 1440x1080, 5Mbps
Progressive Shooting Mode: Yes (25p)
CINE Image Mode: Yes
x.v.Color: Yes
Video Snapshot: Yes
Dual Shot: Yes
Pre RECORD Yes
Colour Bars and Test Tone No
Search
Still Image: No
Date: Yes (date select, calendar, timeline, Face Timeline, Face Jump, 3D Flip)
Memory
Multi Media Card: No
Secure Digital Card: SD / SDHC
Movie Recording: Yes
Internal Data Transfer: MOVIE: Yes (internal memory to card)
STILLS: Yes (internal memory to card)
Audio
System: Dolby Digital 2ch (AC-3 2ch);
5.1ch surround sound (via Optional SM-V1 microphone)
Manual Rec. Level Control: Yes
Audio Dubbing No
Terminal
Headphone: Yes
Microphone: No
USB: Yes (USB 2.0 Hi Speed out only)
DV: No
Direct Print: Yes
Analogue-in: No
AV: Yes (Out only)
S-video: No
Component: Yes (Out only)
HDMI: Yes (HDMI Mini Connector: v1.3, CEC supported, out only)
LANC: Yes (optional RA-V1 adaptor)
Built-in Charger: Yes
Quick Start
Quick Start: Yes (using LCD screen)
Accessory Shoe
Accessory Shoe: Yes (mini Advanced Accessory Shoe)
Built-in Video Light
Built-in Video Light: Yes (white LED)
Built-in Flash
Built-in Flash: Yes
PC Connection Kit
Digital Video Solution Disk: Yes - v34
DV Network Solution Disk: No
Application Software: Yes (PIXELA ImageMixer™ 3 SE, Music Transfer utility)
USB Cable: Yes
Web
Easy Web Upload: Yes
HD->SD conversion: Yes
Wireless Controller
Wireless Controller: Yes
Battery Pack
Type: Lithium Ion
Intelligent Battery System: Yes
Battery Included In The Kit: BP-808
Max Recording Time (included battery): 1hr 40mins
Quick Charge: No
Long Life Battery: BP-827
Longer Recording Time: 5hr 10mins using EVF (normal LCD brightness if no EVF) and optional long life BP
Dimensions
W x H x D: 68 x 60 x 123mm
Weight Approx. 320g
