Canon Legria HF S21 Full HD Video Camera

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Product Description:

Canon’s flagship model, the LEGRIA HFS21 encompasses an unrivalled feature set. With a 3.5 inch Touch LCD screen allowing for greater ease of use, Touch Focus and Track, 64GB Dual Flash Memory with Dual SD Card Slots, and genuine 1/2.6” Canon HD CMOS Sensor, the Canon LEGRIA HFS21 captures breathtaking video.

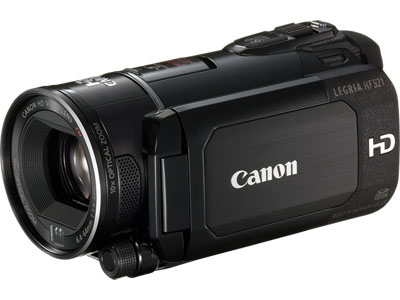

Canon Legria HF-S21 Video Camera

Features

Specifications

Format Type: Flash - SD / SDHC + Built In
Sensor: 1/2.6-inch Canon HD CMOS sensor, 8.59 Megapixels
Image Processor: DiG!C DV III
Video Data: AVCHD 1080/50i. 1080/25P (Maximum AVCHD 24Mbps)
Recording Modes: MXP 24Mbps / FXP 17Mpbs / XP 12Mbps / SP 7Mbps / LP 5Mbps
Total Pixels: 8.59 Megapixels
Still Image: 8.02 Megapixels
Real Widescreen 16:9: 6.01 Megapixels
Optical / Digital: 10x / 200x
Focal Length: 6.4 -64 mm
Maximum Aperture: f/1.8 to f/3.0
Minimum Focusing Distance (mm): 10 (wide angle)
Shutter Speed: 1/2-1/2,000 sec.
Image Stabilizer: Optical system (Dynamic mode/powered IS provided)
Lens Cover: Built-in Automatic
AF System: Hi-Speed Instant Auto Focus , Normal AF (Touch and Track available)
Focusing Range: Auto / Manual
Light Metering Method: Evaluative / Centre-weighted average / Spot metering
Exposure Compensation: 12 steps via joystick (Touch Exposure Lock available)
White Balance Mode: Daylight, Shade, Cloudy, Tungsten, Fluorescent, Fluorescent H
Min Illumination: 0.3 Lux (Low Light Mode)
Low Light Mode: Yes (1/2 sec)
Flash: Yes
Video Light: Yes
View Screen / Pixels: Touch Widescreen 3.5 / 922,000 dots / 100% display / Vivid colour LCD
Viewfinder (Colour): 0.27 / 123,000 dots
AE Program Modes: Auto / P / Av / Tv / SCN / CINE Progessive 25P
Scene Modes: Portrait / Sports / Night / Low light/ Snow / Beach / Sunset / Spotlight / Fireworks
Effects: Black & White / Sepia
Fades: Auto Fade / Wipe (Movie only)
Audio Data: Dolby Digital AC-3 2ch (5.1-ch Supported)
Audio Level Metering: Manual audio level VR metering & control with adjustment via LCD
Wind Screen: Auto / Off
Capture Size: 8.02 Megapixels
Memory Card Type: SDHC / SD Double Slot
Still Image Resolution: 3264x1840, 3264x2456, 1920x1440, 640x480
Still Shooting Functions: Auto Exposure Bracketing / High Speed Continuous Shooting / 9-point AiAF
Battery (standard): Avg. 60 min
Charging Time: 150 min
Quick Start/Power Save: Yes, linked with LCD
Built-in Charger: Yes
Terminals: USB 2.0 Hi Speed / mini HDMI / Component output / AV output / Microphone / Headphone/ Mini advanced shoe (RA-V1 supported)
Operating Platforms: Canon photo application software - PC: Windows XP SP2/SP3, Vista (including SP1/SP2), Windows 7; Mac: OS X 10.4 to 10.6; Pixela ImageMixer 3 SE Software - PC: Windows XP SP2/SP3, Vista SP1/SP2, Windows 7
Self Timer: 10 sec / Remote 2 sec
Search: Calendar / Timeline / Date / Face
Dimensions W x H x D: 75.5 x 74 x 148mm
Weight exc. battery (g): Approx. 470g
