Canon Optura 30

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

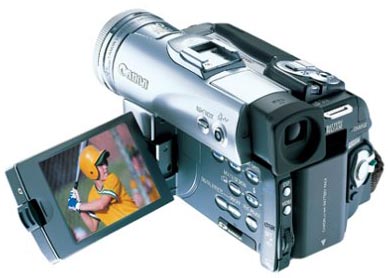

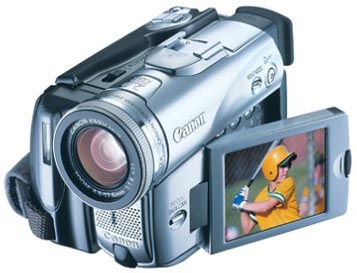

Canon Optura 30
Canon Optura 30 - Rear View


Video format: MiniDV
Audio: 16-bit/12-bit PCM digital sound
Maximum CCD resolution: 2,200,000 pixels
CCD size: 0.29 inches
Eyepiece viewfinder: 0.33-inch TFT color, approx. 113,000 pixels
LCD screen size: 2.5-inch TFT color, approx. 123,000 pixels
LCD swivel: Yes
Aperture: F/1.8-3.0
Filter diameter: 34mm
Optical zoom: 12x
Digital zoom: 240x
Autolight: Yes, flash for stills
Hot shoe for external light: Yes
Image stabilization: Yes
Infrared capability: Yes, Super Night mode
Remote included: Yes
Headphone jack: Yes
Digital still capability: Yes
MPEG movie mode: No
Included still memory: SDC-8M SD Memory Card
Preset titles: Yes
Custom titling: Yes
Programmed recording: Program Auto Exposure
Fade options: Fade trigger, wipe, corner, jump, flip, puzzle, zigzag, beam and tide
Special effects: Art, black & white, sepia, mosaic, ball, cube, wave, color mask, and mirror
Motion sensor: No
Audio sensor: No
USB streaming: No
IEEE1394 (Firewire) output: Yes
USB output: Yes, for digital stills only
S-Video output: Yes
Battery type: Lithium ion
Included in box: Optura 30, NB-2LH Battery Pack, CA-570 Compact Power Adapter, STV-250N Stereo Video Cable, SS-900 Shoulder Strap, WL-D83 Wireless Controller, SDC-8M SD Memory Card, IFC-300PCU USB Cable, DIGITAL VIDEO SOLUTION DISK for Windows, DIGITAL VIDEO SOLUTION DISK for Macintosh
Dimensions (WxHxD): 3.0 x 3.2 x 5.3
Weight: 1.3 pounds (camcorder body only)
