Canon PowerShot A80

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Product Description From Amazon.com:

Featuring a high-tech design with aluminum front cover and metallic handgrip, the Canon PowerShot A80 combines a sense of both the modern and the traditional. Despite its entry-level designation in Canon's digital lineup, the easy-to-operate, 4-megapixel PowerShot A80 is a surprisingly advanced model with sophisticated optics and manual controls. It also features a twisting LCD screen.

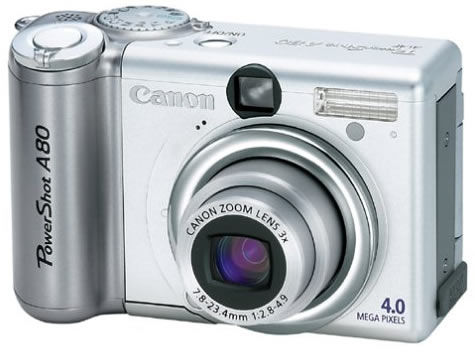

PowerShot A80 - Front View
PowerShot A80 - Rear View

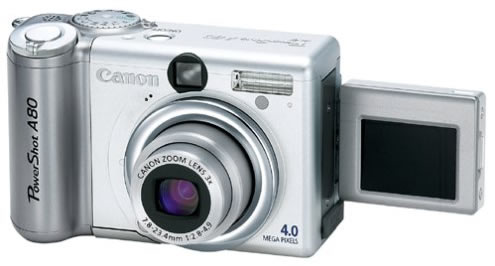

PowerShot A80 - Front View with LCD Screen

Specifications

Image Capture Device Type: 1/1.8 inch Charge-Coupled Device (CCD)
Effective Pixels: Approx. 4.0 million
Lens Focal Length: 7.8- 23.4mm, f/2.8- 4.9 zoom Lens (35mm film equivalent: 38- 114mm)
Digital Zoom: 3.6x
Focusing Range: Normal AF: 1.5 ft. - infinity/45cm - infinity; Macro AF: 2 in. - 1.5 ft./5cm - 45cm (WIDE), 9.8 in. - 1.5 ft./25cm - 45cm (TELE)
Autofocus: 9-point AiAF/ 1-point AF (Fixed to center)
Optical Viewfinder: Real-image optical zoom viewfinder
LCD Monitor: 1.5 inches amorphous sillicon TFT color LCD With variable-angle function
LCD Pixels: Approx. 67,000 pixels [521 (H) x 218 (V)]
LCD Coverage: 100 percent
Maximum Aperture: f/2.8/ 8.0 (W), f/4.9/ 8.0 (T)
Shutter Speed: 15 - 1/2,000 seconds, Slow shutter of 1.3 sec. and more operates with noise reduction
Exposure Control Sensitivity: AUTO/ ISO 50/ 100/ 200/ 400 (Equivalent to ISO)
Light Metering Method: Evaluative/ Center-weighted average/ Spot
Exposure Control Method: Program AE/Aperture or Shutter-priority AE/Manual
White Balance Control: Auto, Pre-set (Daylight, Cloudy, Tungsten, Fluorescent or Fluorescent H) or Custom
Built-in Flash: Operation Modes: Auto, Red-eye Reduction On/ Off, Slow-Sync
Flash Range: WIDE: 1.5 ft. - 14 ft. (45cm - 4.4m), TELE: 1.5 ft.- 8.2 ft. (45cm - 2.5m), Macro: 9.8 in. - 1.5 ft./25cm - 45cm, (When sensitivity is set to ISO 100 equivalent)
Recycling Time: Approx. 10 seconds or shorter
Shooting Modes: Auto, Creative (P, Av, Tv, M, Custom 1, Custom 2), Programmed Image Control Zone, Image (Portrait, Landscape, Night Scene, Stitch Assist, Movie)
Self-Timer: Operates with approx. 2 sec. or approx 10 sec. count-down
Continuous Shooting: Approx. 2.4 shots/ sec. (Large/ Fine Mode and LCD monitor is Off)
Photo Effects: Vivid, Neutral, Low Sharpening, Sepia and Black and White
Storage Media: CompactFlash (CF) Card Type I
Print Order Format: Digital Print Order Format (DPOF) Version 1.1
Image Recording Format: Still Image: JPEG (Exif 2.2 compliant)
JPEG Compression Mode: SuperFine, Fine or Normal
Number of Recording Pixels: Still image: Large: 2,272 x 1,704, Medium 1: 1,600 x 1,200, Medium 2: 1,024 x 768, Small: 640 x 480, Movie: 320 x 240 or 160 x 120
Number of Recordable Images (Quality, File Size(KB), Resolution(pixels), 32MB Card, 64MB Card, 256 MB Card): Large / SuperFine - 2,002, 2,272 x 1,704, 14, 30, 123; Large / Fine - 1,116, 2,272 x 1,704, 27, 54, 222; Large / Normal - 556, 2,272 x 1,704,54, 110, 443; Medium 1/ SuperFine - 1,002, 1,600 x 1,200, 30, 61, 246; Medium 1/ Fine - 558, 1,600 x 1,200, 54, 109, 440; Medium 1/ Normal - 278, 1,600 x 1,200, 108, 217, 868; Medium 2/ SuperFine - 570, 1,024 x 768, 53, 107, 431; Medium 2/ Fine - 320, 1,024 x 768, 94, 189, 762; Medium 2/ Normal - 170, 1,024 x 768, 174, 349, 1,390; Small / SuperFine - 249, 640 x 480, 120, 241, 962; Small / Fine - 150, 640 x 480, 196, 393, 1,563; Small / Normal - 84, 640 x 480, 337, 676, 2,720
Time of Recordable Movie(Quality, Resolution(pixels), 32MB Card, 64MB Card, 128MB Card, 250MB Card): Movie / High - 320 x 240, 91 seconds, 183 seconds, 386 seconds, 735 seconds; Movie / Low - 160 x 120, 242 seconds, 486 seconds, 973 seconds, 1,954 seconds
Playback Modes File: Single, Index (9 thumbnail images), Magnification (approx. 2.0x to 10x), Slide Show or Movie
Erase Modes: Still images: Single Image, All Images; Movie: Part of movie, All of movie
Computer Interface: Universal Serial Bus (USB) (mini-B jack)
Video Out: NTSC or PAL
Audio Out: Monaural
Power Source: AA-size Batteries (Alkaline, Rechargeable NiMH)(x4); Compact Power Adapter (CA-PS500) -- NOTE:adapter not included
Power Supply Shooting Capacity(Battery Type, Number of Shots LCD on, Number of Shots LCD off): AA ALKALINE - Approx. 250, Approx. 800; AA NIMH - Approx. 350, Approx. 1000
Playback Time: Approx. 280 minutes (under Canon's standard conditions*2 with full-charged battery)
Operating Temperature: 32 - 104 degrees F (0 - 40 degrees C)
Operating Humidity: 10 - 90 percent
Dimensions (W x H x D): 4.1 x 2.5 x 1.4 inches / 103.1 x 64.4 x 34.7 mm (Excluding protrusions)
Weight: Approx. 8.8 ounces / 250 g (camera body only)
Windows System Requirements: Computer Model: IBM PC/AT compatible, OS: Microsoft Windows 98 (including Second Edition)/ Me/ 2000/ XP, CPU: Pentium 150MHz or higher processor (Windows 98/ Me/ 2000), Pentium 300MHz or higher processor (Windows XP), Interface: USB (Windows 98/ Me/ 2000/ XP pre-install model only).
Macintosh System Requirements: Computer Model: Power Macintosh, PowerBook, iMac, eMac or iBook, OS: OS 9.0 - 9.2 or OSX 10.1 - 10.2, CPU: PowerPC, Interface: USB (Models with Apple genuine USB interface only).
