Canon PowerShot Pro 1

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

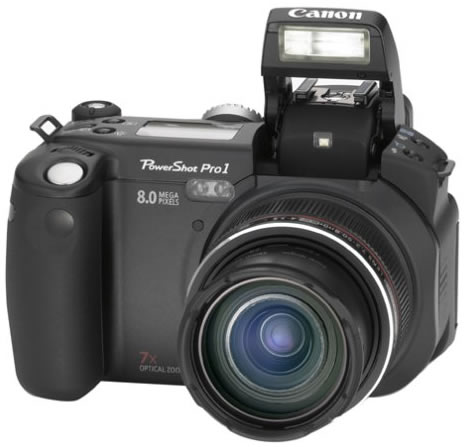

PowerShot Pro 1


Type:Compact digital still camera w/ built-in flash and 7x Optical Zoom and 3.2x Digital Zoom, 22x Combined Zoom
Image capture device:8.0 MP 2/3" CCD
Color depth:8 bits x 3 colors
Resolution (recording pixels): 640 x 480 pixels (Small), 1024 x 768 (Med Low), 1600 x 1200 (Med Mid), 2277 x 1704 (Med High), 3264 x 2448 (Large);320 x 240 or 160 x 120 (Movie)
ISO sensitivity:Auto, or User Set ISO 50, 100, 200, 400
Image quality modes (JPEG):Normal, Fine, Superfine
File format:Design rule for Camera File System, DPOF Ver. 1.1 (Digital Print Order Format)
Image recording format: Still Image: JPEG or RAW; Movie: AVI. Exif 2.2 compliant
Recording media:CompactFlash (CF) Card, Type I & II
Shooting modes:Auto, Creative (P, Av, Tv, M), Image (Portrait, Landscape, Night Scene, Stitch Assist, Movie) , Custom 1, Custom 2
Photo effects:Vivid, Neutral, Low Sharpness, Sepia, B/W, Custom
Playback modes:Single, Index (9 Thumbnails), Magnification (Approx. 2x~10x) or Slide Show, Movie
Erase mode:Single Images, All Images
Interfaces:USB; AV Output (NTSC/PAL Selectable, monaural audio) & CF Card slot (Complied w/ Type II Standard), Direct Connection to Canon Direct Photo Printers & PictBridge compatible Printers
Lens:7.2-50.8mm, f/2.4-3.5 zoom lens (equiv. to 28-200mm in 35mm format)
Shutter speed:15-1/4000 sec. slow shutter of 1.3 sec. and more operates w/ noise reduction
Focus range: Normal AF: 1.6 ft. (50cm)~infinity (WIDE), 3.3 ft. (1m)~infinity (TELE); Macro AF: 3.9 in.~1.6 ft. (10~50cm) (WIDE), 1.0~1.6 ft. (30~50cm) (TELE); Super Macro: 1.2 in.~1.0 ft. (3~30cm); Manual: 3.9 in. (10cm)~infinity (WIDE), 1.0 ft. (30cm)~infinity, 3.3 ft.~infinity (TELE)
Light metering method:Evaluative Metering, Center-weighted average metering or Spot metering
Exposure control:Program AE, Shutter Priority, Aperture Priority or Manual; AE Lock is available
Compensation:+/-2.0 EV in 1/3 step increments
White balance control:TTL Auto White Balance, Preset White Balance (Avail. settings
Optical viewfinder:Color LCD viewfinder
LCD:2.0" low-temperature polycrystalline silicon TFT color LCD (Vari-angle)
Power:Rechargeable lithium ion battery (BP-511A) or Compact Power Adapter CA-560,Car Battery Cable Kit CR-560
Dimensions (W x H x D):4.6" x 2.8" x 3.6"/117.5 x 72 x 90.3mm
Weight:Approx. 19.2 oz./545g (camera body only)
What's in the box:PowerShot Pro1 digital camera, 64 MB CompactFlash card, lens hood (LH-DC10), battery pack (BP-511A), battery charger (CB-5L), wireless controller (WL-DC100), USB and A/V cables, lens cap, and neck strap
Software:CD-ROM includes browsing and printing software ZoomBrowser EX (Windows) and ImageBrowser (Mac). Other software includes PhotoStitch, plus photo and movie manipulation software ArcSoft PhotoStudio and VideoImpression.
