Canon PowerShot S300

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

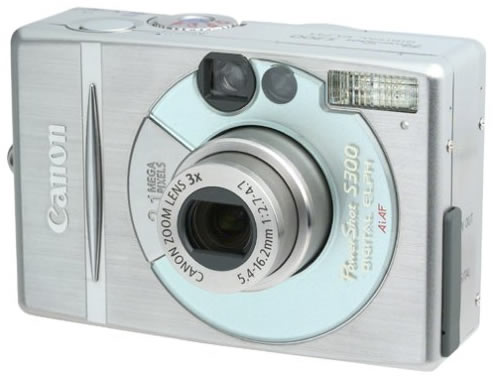

PowerShot S300


Maximum image resolution:1600 x 1200
Image resolution options:High
Image resolution options:Medium
Image resolution options:Low
Maximum CCD resolution:2.11 megapixels
CCD size:.37 inches
Optical viewfinder:Yes
LCD screen size:1.5 inches
LCD swivel:No
Aperture:F/2.7-F/8 (wide-angle), F/4.7-F/14 (telephoto)
Optical zoom:3x
Digital zoom:2.5x
Compatible memory types:CompactFlash Type I
Max. photos at highest quality:7
Max. photos at lowest quality:87
Image type(s):JPEG
Uncompressed mode:No
ISO film-speed equivalency:100 (150 in low-light)
Macro focus range:6.3 to 30 inches
Shutter speed range:1-1/5000 second
Autofocus system:TTL 3 point AiAF
Manual focus:No
Focus range:2.5 feet to infinity
Shutter priority mode:No
Aperture priority mode:No
Main exposure mode:Program AE
Manual exposure mode:No
Manual white balance mode:No
Built-in flash:Yes
Red-eye reduction:Yes
Fill-flash (forced flash):No
Flash-off mode:Yes
Night portrait (flash synch) mode:Yes
Hot shoe for external flash:No
Black and white:Yes
Movie mode:Yes
Max. movie length:30 seconds
Audio recording:Yes
Burst mode or continuous shooting:Yes
Frames/sec in burst mode:2.5
Self timer:Yes
Remote included:No
Special effects:Black and White
Compatible systems:Mac, PC
Mac system requirements:Power Macintosh, PowerBook, iMac or iBook, Mac OS 7.5 or higher, Quicktime 2.1 or higher, 20 MB or more application memory, USB port
PC system requirements:Windows 95/98/NT4.0/2000/ME, Pentium 155 or better, 32 MB RAM or better (Windows 95/98), 64 MB RAM (Windows 2000/ME), USB port
Software included:Arcsoft Camera Suite Disk, Canon Digital Camera Solution Disk
Serial output:No
USB output:Yes
Video output:Yes
Battery requirements:NB-1L lithium-ion battery
Batteries included:Yes
Rechargable batteries included:Yes
AC adapter included:No
Included in box:S300, 8 MB CompactFlash card, NB-1L battery, CB-2LS battery charger, interface cable IFC-300PCU, A/V cable AVC-DC100, wrist strap WS-120, software CD-ROMs, user manual, warranty card
Width:3.7 inches
Height:2.5 inches
Depth:1.2 inches
Weight:8.5 oz.
