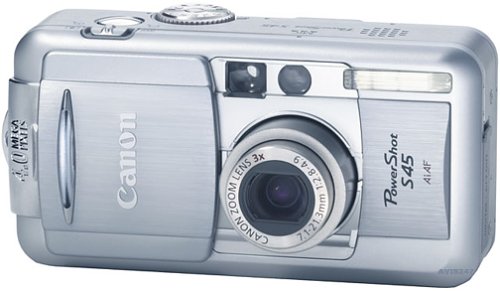

Canon PowerShot S45

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

PowerShot S45

Specifications

Maximum image resolution:2,272 x 1,704
Image resolution options:Large
Image resolution options:Medium
Image resolution options:Small
Maximum CCD resolution:4.0 million pixels
CCD size (inches):1/1.8 inches
Optical viewfinder:Real-image optical zoom viewfinder
LCD screen size:1.8 inch low temperature polycrystalline silicon TFT color LCD
LCD swivel:No
Aperture:f/2.8-f4.9
Optical zoom:3x
Digital zoom:3.6x
Compatible memory type:CompactFlash (CF) Card Type I or Type II
Onboard memory:0 MB
Included memory cards:32 MB CompactFlash
Max. photos at highest quality:14 with 32 MB card
Max. photos at lowest quality:337 with 32 MB card
Image type(s):JPEG
Uncompressed mode:RAW
ISO film-speed equivalency:50, 100, 200, 400
Macro focus range:10 cm
Shutter speed range:15-1/1,500 sec
Autofocus system:9-point AiAF or FlexiZone AF
Manual focus:Yes
Focus range:Macro AF
Shutter priority mode:Yes, full range manual
Aperture priority mode:Yes, full range manual
Main exposure mode:Program AE, Shutter priority AE, Aperture priority AE or Manual exposure control; AE lock is available
Spot metering mode:Yes
Manual exposure mode:Yes
Programmed exposure modes:Portrait, Landscape, Night Scene, Fast Shutter, Slow Shutter, Stitch Assist and Movie
Manual white balance mode:TTL Auto White Balance, Pre-set White Balance (available settings
Built-in flash:Yes
Red-eye reduction:Yes
Fill-flash (forced flash):No
Flash-off mode:Yes
Night portrait (flash synch) mode:No
Hot shoe for external flash:No
Black and white:Yes
Movie mode:Yes, resolutions of 320 x 240 and 160 x 120
Max. movie length:Up to 3 minutes
Audio recording:Yes
Self timer:2 or 10 sec
Remote included:No
Special effects:Vivid Color, Neutral Color, Low Sharpening, Sepia, Black and White, and Custom
Compatible systems:PC, Mac
Mac system requirements:Mac OS 8.6 through 9.2, OS X; note that Adobe Photoshop LE, Canon File Viewer Utility v. 1.0, and USB Mounter v. 1.8 software are not supported in Mac OS X
PC system requirements:Windows 98 (including the Second Edition), Windows 2000, Windows Me, Windows XP
Software included:ArcSoft Camera Suite
Serial output:No
USB output:Yes
Video output:Yes
Batteries included:Yes
Rechargeable batteries included:Yes, Lithium Battery Pack NB-2L
AC adapter included:Yes, Battery Charger CB-2LT
Body type:Point-and-shoot
Included in box:PowerShot S45 digital camera, battery and battery charger, USB and AV cables, wrist strap, and ArcSoft Camera Suite CD-ROM and USB drivers for Windows and Mac
Width:4.4 inches
Height:2.3 inches
Depth:1.7 inches
Weight:11.1 ounces
