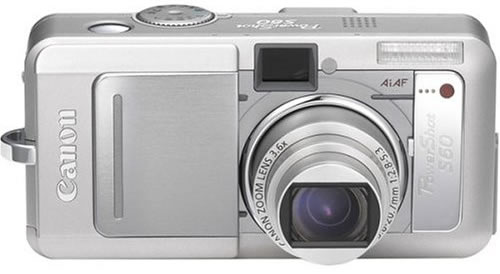

PowerShot S60


CCD:1/1.8 inch charge coupled device (CCD)
Total Pixels:Approx. 5.3 Million
Effective Pixels:Approx. 5.0 Million
Focal Length:5.8 (W) - 20.7 (T)mm zoom lens (35mm film equivalent
Digital Zoom:4.1x
Focusing Range: Normal AF: 44cm (1.4 ft.) - infinity (W/T); Macro AF: 4 - 44cm/1.6 in. - 1.4 ft. (W)/30 - 44cm/1.0 - 1.4 ft. (T)
Autofocus System:9-point AiAF (Automatic Focus Point Selection)/1-point AF (Fixed to center)
Optical Viewfinder:Real-image optical zoom viewfinder
LCD Monitor:1.8 inch low temperature polycrystalline silicon TFT color LCD
LCD Pixels:Approximately 118,000 pixels
Maximum Aperture:f/2.8 - f/8.0 (W); f/5.3 - f/8.0 (T)
Shutter Speed:15-1/2,000 sec.
Sensitivity:AUTO/ISO 50/100/200/400 equivalent
Light Metering Method:Evaluation/Center-weighted average/Spot*
Exposure Control Method:Program AE, Shutter priority AE, Aperture priority AE or Manual
Exposure Compensation:+/- 2 EV in 1/3-stop increments
Auto Exposure Bracketing:(AEB) is available.
White Balance Control:TTL Auto, Pre-set (Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, or Flash, Underwater), or Custom White Balance
Flash Modes:Auto/On/Off, Red-Eye Reduction On/Off, Slow Syncro
Flash Range:Normal
Recycling Time:Approx. 10 sec. or less.(battery voltage=3.7V)
Flash Exposure Compensation:+/- 2.0 EV in 1/3-stop increments
Shooting Modes: Creative zone: P, Av, Tv, M, Custom; Image zone: Portrait, Landscape, Night Scene, Fast Shutter, Slow Shutter, Stitch Assist, Movie
Self-Timer:Approx. 2 sec. or approx 10 sec. count-down
Continuous Shooting: High Speed: Approx. 2.0 shots/sec.; Normal Speed: Approx. 1.5 shots/sec. (Large/Fine Mode and LCD monitor is Off)
Photo Effects:Vivid, Neutral, Low Sharpening, Sepia, Black & White and Custom
Storage Media:CompactFlash (CF) Card Type I or Type II
File Format:Design rule for Camera File System (DCF*1)
Print Order Format:Digital Print Order Format (DPOF) Version 1.1
Image Recording Format: Still Image: JPEG (Exif 2.2 compliant)/RAW
JPEG Compression Mode:SuperFine, Fine or Normal
Number of Recording Pixels: Still Image: 2,592 x 1,944 (Large), 2,048 x 1,536 (Medium 1), 1,600 x 1,200 (Medium 2), 640 x 480 (Small); Movie: 640 x 480, 320 x 240, 160 x 120
Playback Modes File:Single, Index (9 thumbnails), Magnification (2x to 10x), Slide Show or Movie
Erase Modes: Still Images: Single Image, All Images; Movie: Part of Movie, All Movie
Computer Interface:Universal Serial Bus (USB) (mini-B jack)
Video Out:NTSC/ PAL
Dimensions:4.49 x 2.22 x 1.53 inces (W x H x D)
Weight:Approx. 8.11 ounces (camera body only)
Windows Compatibility: Microsoft Windows 98 (including Second Edition)/Me/2000/XP.
Mac Compatibility: Mac OS 9.0 - 9.2, Mac OS X (v10.1/10.2).
