Canon PowerShot SD10

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

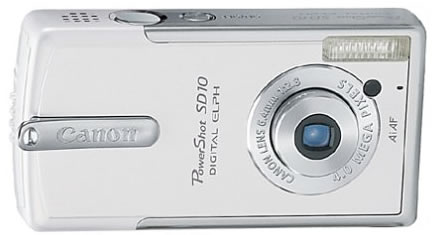

PowerShot SD10

Specifications

Image Capture Device Type:1/2.5 inch Charge-Coupled Device (CCD)
Effective Pixels:Approx. 4.0 million
Lens:6.4mm f/2.8 Fixed Focal Length(approximately equivalent to 39mm in 35mm format)
Digital Zoom:5.7x Digital Zoom
Focusing Range: Normal: AF: 4 in. - Infinity/ 10cm - Infinity, Macro AF: 1.2 in. - 4 in./ 3cm - 10cm
Autofocus:5-point AiAF/ 1-point AF (Fixed to center)
Optical Viewfinder:Real-image optical zoom viewfinder
LCD Monitor:1.5 inch low temperature polycrystalline silicon TFT color LCD
LCD Pixels:Approx. 78,000 pixels
Aperture Range:f/2.8 or f/5.6
Shutter Speed:15 - 1/1,500 seconds
Exposure Control Sensitivity:Auto/ ISO 50/ 100/ 200/ 400 (equivalent ISO)
Light Metering Method:Evaluative, Center-weighted Average or Spot Metering
Exposure Control Method:Program AE
White Balance Control:Auto, Pre-set (Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H)
Built-in Flash: Operation Modes: Auto, Red-eye Reduction On/ Off, Slow-sync
Flash Range: Balance (Available settings: Daylight, Cloudy)
Shooting Modes:Auto, Manual, Slow Shutter, Quick Shot, Stitch Assist, Movie
Photo Effects:Vivid Color, Neutral Color, Low Sharpening, Sepia, Black and White
Storage Media:SD Memory Card
Print Order Format:Digital Print Order Format (DPOF) Version 1.1
Image Recording Format: Still Image: JPEG (Exif 2.2 compliant)
JPEG Compression Mode:SuperFine, Fine or Normal
Number of Recording Pixels: Still image: Large: 2,272 x 1,704, Medium 1: 1,600 x 1,200; Medium 2: 1,024 x 768, Small: 640 x 480; Movie: 320 x 240 or 160 x 120
Number of Recordable Images: Menu Selection: File Size (KB), Resolution (pixels), 16MB SD card, 32MB SD card, 128MB SD card): Large / SuperFine: 2,002, 2,272 x 1,704, 6, 14, 61; Large / Fine: 1,116, 2,272 x 1,704, 12, 26, 109; Large / Normal: 556, 2,272 x 1,704, 24, 52, 216; Medium 1/ SuperFine: 1,002, 1,600 x 1,200, 13, 29, 121; Medium 1/ Fine: 558, 1,600 x 1,200, 24, 52, 216; Medium 1/ Normal: 278, 1,600 x 1,200, 46, 99, 411; Medium 2/ SuperFine: 570, 1,024 x 768, 23, 50, 211; Medium 2/ Fine: 320, 1,024 x 768, 42, 89, 372; Medium 2/ Normal: 170, 1,024 x 768, 74, 157, 651; Small / SuperFine: 249, 640 x 480, 52, 110, 460; Small / Fine: 150, 640 x 480, 81, 171, 711; Small / Normal: 84, 640 x 480, 128, 269, 1117
Time of Recordable Movies: Menu Selection: Resolution (pixels), 16MB SD card, 32MB SD card, 128MB SD card): Movie / High: 320 x 240, 40 seconds, 85 seconds, 355 seconds; Movie / Low: 160 x 120, 99 seconds, 209 seconds, 869 seconds
Playback Modes File:Single, Index (9 thumbnail images), Magnification (approx. 2.0x to 10x), Slide Show or Movie
Erase Modes: Still images: Single Image, All Images, Movie: Part of movie, All of movie
Computer Interface:Universal Serial Bus (USB) (mini-B jack)
Video Out Interfaces:NTSC or PAL
Other Interfaces:SD memory card slot. Direct connection to Canon Card Photo Printers and select Bubble Jet Direct Photo Printers and PictBridge-compliant printers (no computer required), using camera's USB cable.
Power Source:Rechargeable Lithium-ion battery (NB-3L)
Shooting Capacity:Approx. 180 shots (LCD monitor ON), Approx. 480 shots (LCD monitor OFF) (At 73 degrees F/23 degrees C, flash used for every fourth shot)
Playback Time:Approx. 150 minutes
Operating Temperature:32 - 104 degrees F (0 - 40 degrees C)
Operating Humidity:10 - 90 percent
Dimensions (W x H x D):3.6 x 1.9 x 0.7 inches/ 90.3 x 47.0 x 18.5mm (Excluding protrusions)
Weight:Approx. 3.5 ozunces/ 100g (Camera body only)
Windows System Requirements: Computer Model: IBM PC/AT compatible, OS: Microsoft Windows 98 (including Second Edition)/ Me/ 2000/ XP, CPU: Pentium 150MHz or higher processor (Windows 98/ 98SE/ Me/ 2000), Pentium 300MHz or higher processor (Windows XP), Interface: USB (Windows 98/ 98SE/ Me/ 2000/ XP pre-install model only) and CD-ROM
Macintosh System Requirements: Computer Model Computer Model: Power Macintosh, PowerBook, iMac, eMac or iBook, OS: OS 9.0 - 9.2 or OSX 10.1 - 10.2, CPU: PowerPC, Interface: USB (Models with Apple genuine USB interface only) and CD-ROM
