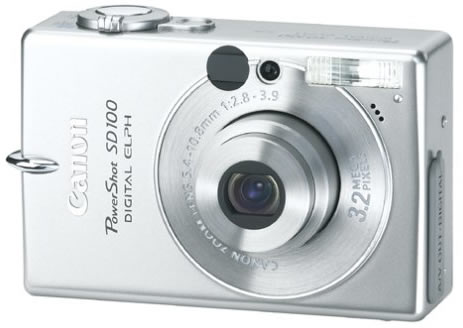

PowerShot SD100

Specifications

Type of Camera:Compact digital still camera with built-in flash and 2x Optical/ 3.2x Digital/ 6.4x Combined Zoom
Image Capture Device Type:1/2.7 inch Charge-Coupled Device (CCD)
Effective Pixels:Approx. 3.2 million
Focal Length:5.4 - 10.8mm, f/2.8 - 3.9 zoom lens (35mm film equivalent
Digital Zoom:3.2x Digital Zoom (Maximum 6.4x digital zoom is available when combined with optical zoom)
Focusing Range: Normal: AF: 18 in. - Infinity/ 47cm - Infinity, Macro AF: 4 in. - 18 in./ 10cm - 47cm (WIDE); 9 in. - 18 in./ 23cm - 47cm (TELE)
Autofocus:9-point AiAF/ 1-point AF (Fixed to center)
Optical Viewfinder:Real-image zoom viewfinder
LCD Monitor:1.5 inch low temperature polycrystalline silicon TFT color LCD
LCD Pixels:Approx. 118,000 pixels
LCD Coverage:100%
Aperture Range:f/2.8/ 7.1 (W), f/3.9/ 10 (T)
Shutter Speed:15 - 1/1,500 sec.
Sensitivity:Auto/ ISO 50/ 100/ 200/ 400 (equivalent ISO)
Light Metering Method:Evaluative, Center-weighted Average or Spot Metering
Exposure Control Method:Program AE
AE Lock:Available
White Balance Control:Auto, Pre-set (Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H), or Custom
Built-in Flash:Operation Modes
Flash Range:1.6 ft. - 9.8 ft./ 47cm-3.0m (WIDE); 1.6 ft. - 6.6 ft./ 47cm - 2.0m (TELE); 11 in. - 18 in./ 27cm - 47cm (Macro) (When ISO is speed is set to AUTO)
Recycling Time:Approx. 10 sec. or less
Shooting Modes:Auto, Program, Manual, Stitch Assist, Movie.
Self-Timer:Operates with approx. 2 sec. or approx 10 sec. count-down.
Continuous Shooting:Approx. 2.2 shots/sec. (Large/ Fine Mode and LCD monitor is Off)
Photo Effects:Vivid Color, Neutral Color, Low Sharpening, Sepia, Black & White
Storage Media:SD Memory Card
Print Order Format:Digital Print Order Format (DPOF) Version 1.1
Image Recording Format:Still Image
JPEG Compression Mode:SuperFine, Fine or Normal
Number of Recording Pixels: Large: 2,048 x 1,536, Medium1: 1,600 x 1,200, Medium2: 1,024 x 768, Small: 640 x 480 pixels Movie: 640 x 480, 320 x 240 or 160 x 120
Playback Modes File:Single, Index (9 thumbnail images), Magnification (approx. 2.0x to 10x), Slide Show or Movie
Erase Modes: Still images: Single Image, All Images Movie: Part of movie, All movie
Computer Interface:USB (mini-B jack)
Video Out:NTSC or PAL
Other:SD memory card slot. Direct connection to Canon Card Photo Printers and select Bubble Jet Direct Photo Printers (no computer required), using camera's USB cable.
Power Source:1. Rechargeable Lithium-ion battery (NB-3L) 2. Compact Power Adapter (CA-PS500 & DC Coupler DR-900)
Shooting Capacity:Approx. 180 shots (LCD monitor ON) Approx. 480 shots (LCD monitor OFF) (At 73�F/23�C, flash used for every fourth shot)
Playback Time:Approx. 150 min.
Operating Temperature:32 - 104�F (0 - 40�C)
Operating Humidity:10 - 90%
Dimensions (W x H x D):3.35 x 2.20 x 0.94 in./ 85 x 56 x 23.9mm (Excluding protrusions)
Weight:Approx. 5.82 oz./ 165g (Camera body only)
What's in the Box: PowerShot SD100 Body; Battery Charger CB-2LU; Wrist Strap WS-300; SD Memory Card SDC-16M; Battery Pack NB-3L; ArcSoft Camera Suite CD-ROM; Digital Camera Solution CD-ROM; Interface Cable IFC-300PCU; AV Cable AVC-DC100
System Requirements:A CD-ROM drive is required for installing software
Windows: Computer Model: IBM PC/ AT compatible OS: Microsoft Windows 98 (including Second Edition)/ Me/ 2000/ XP. CPU: Pentium 150MHz or higher processor (Windows 98/ Me/ 2000), Pentium 300MHz or higher processor (Windows XP). Interface: USB (Windows 98/ Me/ 2000/ XP pre-install model only).
Macintosh: Computer Model: Power Macintosh, PowerBook, eMac, iMac or iBook OS: Mac OS 9.0 - 9.2, Mac OS X (v10.1/ 10.2). CPU: PowerPC. Interface: USB (Models with Apple genuine USB interface only).
