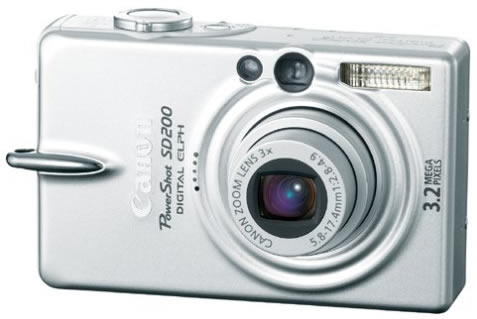

Canon PowerShot SD200

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

PowerShot SD200

Specifications

Type:Compact digital still camera with built-in flash
Zoom capabilities:3x optical zoom, 3.2x digital zoom, 10x combined zoom
Image capture device:1/2.5-inch charge-coupled device (CCD)
Total pixels:Approximately 3.3 million
Effective pixels:Approximately 3.2 million
Focal length:5.8 (wide) to 17.4 (telephoto) millimeters, f2.8-4.9 (35mm film equivalent
Digital zoom:3.0x
Autofocus system:9-point AiAF/1-point AF (fixed to center), Intelligent Orientation Sensor, AF Lock, AF-assist Beam, On/Off
Optical viewfinder:Real-image optical-zoom viewfinder
LCD monitor:2.0-inch low-temperature polycrystalline silicon TFT color LCD
LCD pixels:Approximately 118,000 pixels
LCD coverage:100%
Maximum aperture:f2.8/5.6 (wide), f4.9/10.0 (telephoto)
Shutter speed:15-1/1500 seconds (manual setting is available from 15 to 1 seconds when in Long Shutter mode)
Sensitivity:Auto (camera automatically sets optimum speeds); ISO 50/100/200/400 equivalent
Light metering method:Evaluative, Center-weighted average, or Spot (metering frame when spot is center fixed)
Exposure control method:Program AE
Exposure compensation:+/-2.0 EV (exposure value) stops in 1/3-stop increments
AE lock:Available
White balance control:Auto, Pre-set (Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H), or Custom
Built-in flash:Auto, Auto with Red-Eye Reduction, Flash on with Red-Eye Reduction, Flash On/Off, Slow-sync
Recycling time:Approximately 10 seconds or less
Shooting modes:Auto, Manual, Scene Modes (Digital Macro, Portrait, Night Snapshot, Kids & Pets, Indoor, Underwater), Stitch Assist, Movies
Photo effects:Off, Vivid, Neutral, Low Sharpening, Sepia, Black & White
Self-timer:Operates with approximately 2-second or 10-second countdown
Wireless control:Not available
Continuous shooting:Approximately 2.4 shots per second (Large/Fine mode and LCD screen is off)
Storage media:SD Memory Card
File format:Design Rule for Camera File System Exif 2.2 (JPEG)
Print order format:Digital Print Order Format (DPOF) version 1.1
Image recording format:Still image: JPEG (Exif 2.2 compliant)
JPEG compression mode:SuperFine, Fine, or Normal
Number of recording pixels: Large: 2048x1536, Medium1: 1600x1200, Medium2: 1024x768, Small: 640x480 pixels, Movie: 640x480, 320x240, or 160x120
Playback modes file:Single, Index (9 thumbnail images)
Computer interface:USB (mini-B PTP), audio/video output (NTSC or PAL selectable)
Video out:NTSC or PAL
Other:SD memory card slot; irect connection to Canon CP Printers and BJ Photo Printers (no computer required) using camera's USB cable
Power source:Rechargeable Lithium-ion battery (NB-4L); AC adapter kit (ACK-DC10), sold separately
Shooting capacity: NB-4L: LCD on, approximately 140; LCD off, approximately 400
Playback time:Approximately 180 minutes
Operating temperature:32 to 104 degrees F/0-40 degrees C
Operating humidity:10 to 90%
Dimensions (WxHxD):3.38 by 2.10 by 0.83 inches/85.8 by 53.4 by 21.1 millimeters
Weight:Approximately 4.06 ounces/115 grams (camera body only)
