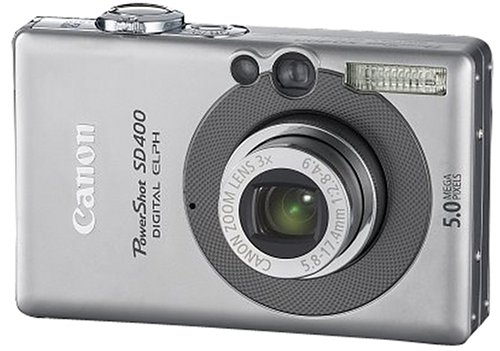

Canon PowerShot SD400

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

PowerShot SD400

Specifications

Type:5.0 megapixel, 1/2.5 inch type charge coupled device (CCD)
Total pixels:Approximately 5.3 megapixels, 5.0 effective megapixels
Focal length:5.8 to 17.4 millimeters, F2.8 to F4.9 (35mm film equivalent
Digital zoom:4x
Focusing range: NORMAL: 1.0 feet / 30 centimeters to infinity. MACRO: 1.2 inches to 1.6 feet / 3 to 50 centimeters (WIDE), 1.0 to 1.6 feet / 30 to 50 centimeters (TELE). Digital macro: 1.2 to 3.9 inches / 3 to 10 centimeters (WIDE)
Autofocus system:9-point AiAF / 1-point AF fixed to center (intelligent orientation sensor), AF lock, AF-assist beam on/off
Optical viewfinder:Real image optical zoom viewfinder
LCD monitor:2.0 inch low-temperature polycrystalline silicon TFT color LCD
LCD pixels:Approximately 118,000 pixels
LCD coverage:100 percent
Maximum aperture:F2.8 to F5.6 (W), F4.9 to F10.0 (T)
Shutter speed:15 to 1/1500 seconds
Sensitivity:AUTO, ISO 50/100/200/400 equivalent
Light metering method:Evaluative, center-weighted average, Spot (center fixed)
Exposure control method:Program AE, AE lock is available
Exposure compensation:Plus or minus 2 stops in 1/3-stop increments
White balance control:Auto, pre-set (daylight, cloudy, tungsten, fluorescent, fluorescent H), custom
Built-in flash: Operation modes: auto, flash on, flash off, slow synchro red-eye reduction is available
Flash range: Normal: 1.6 to 11.5 feet / 50 centimeters to 3.5 meters (W), 1.6 to 6.7 feet / 50 centimeters to 2.0 meters (T). Macro: 1.0 to 1.6 feet / 30 to 50 centimeters W/T (When sensitivity is set to auto)
Recycling time:Approximately 10 seconds or less (battery voltage=3.7V)
Shooting modes: Still Images: auto, manual, scene modes (digital macro, portrait, night snapshot, kids and pets, indoor, underwater), my colors, stitch assist; Movies: standard, fast frame rate, compact, my colors.
Photo effects:Off, vivid, neutral, low sharpening, sepia, black and white
Self-timer:Activates shutter after approximately 2 or 10 second delay, custom
Wireless control:Not available
Continuous shooting:Approximately 2.1 shots per second
Storage media:SD memory card
Print order format:Design rule for camera file system JPEG and DPOF compliant
Image recording format: Still: JPEG; Movies: AVI image data: motion JPEG; audio data: WAVE (monaural)
JPEG compression mode:Normal, fine, superfine
Number of recording pixels: Still image: 2592 x 1944 large, 2048 x 1536 medium 1, 1600 x 1200 medium 2, 640 x 480 small, 1600 x 1200 postcard date imprint mode. Movie: 640 x 480, 320 x 240, 160 x 120
Playback modes:Single, index (9 thumb images), normal playback, special playback, slow motion, movie rditing
Erase modes: Still images: single images, all images. Movies: part of movie, all of movie
Computer interface:USB 2.0 Hi-Speed
Video out:NTSC, PAL
Audio out:Monaural
Other:SD memory card slot. Direct connection to Canon CP printers and select BJ printers (no computer required)
Power source:One rechargeable lithium-ion battery NB-4L, AC adapter kit (ACK-DC10)
Shooting capacity:LCD on - approximately 150 shots (CIPA test standard); LCD off - approximately 400 shots.
Operating temperature:32 to 104 degrees F / 0 to 40 degrees C
Operating humidity:10 to 90 percent
Dimensions (W x H x D):3.39 x 2.09 x 0.81 inches / 86.0 x 53.0 x 20.7 millimeters (excluding protrusions)
Weight:Approximately 4.59 ounces / 130 grams (camera body only)
