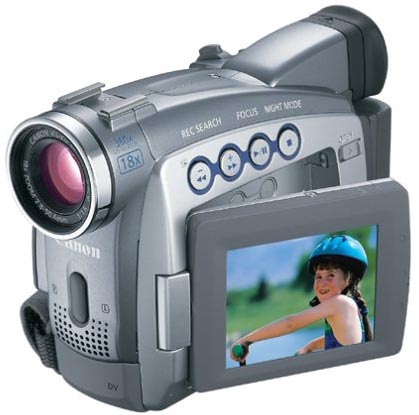

Canon ZR-80

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

  • 18x optical zoom lens (digital zoom to 360x) and image stabilizer
  • 2.5-inch LCD with 180-degree rotation
  • Capture low-light recordings with Night Mode
  • Record for up to 2 hour and 5 minutes on one battery charge

Product Description From Canon...

Special moments may come and go, but with Canon's newest ZR-series camcorders you can capture and relive those sunny days at the beach, casual strolls through crisp fall foliage and family-packed holiday celebrations with brilliant clarity. Smoothly conforming to the contour of your hand, the ZR series camcorders feature the ultimate in Canon design and functionality, allowing you to effortlessly capture once-in-a-lifetime moments whenever and wherever they happen. The Canon ZR80 gives you portable movie-making power at a price that will inspire you. Featuring the superior clarity of Canon's 18x Optical Zoom Lens paired with an advanced image stabilization system, the ZR80 will keep all your memories looking sharp and true to life. Offering exceptional value, easy operation, and outstanding performance, Canon's ZR80 camcorder can turn even every day occasions into milestones you can cherish forever. Take stunning video - Offering exceptional value, easy operation, and outstanding performance, Canon's ZR80 camcorder can turn even every day occasions into milestones you can cherish forever. Connect effortlessly to your computer, TV or VCR - Embracing the industry's latest and most sophisticated technology, Canon camcorders feature an exclusive connection circuit, called VIC. VIC is a virtual powerhouse. Traditionally, multiple chips were needed to perform the camcorder's input and output functions. However VIC manages it all with one single chip.

Canon 7R 80


Specifications

Video format: MiniDV
Power Supply: 7.4 V DC
Power Consumption: 2.3 W (using viewfinder), 3.3 W (using LCD)
Television System: EIA standard (525 lines, 60 fields) NTSC color signal
Video Recording System: 2 rotary heads, helical scanning system, DV system, Digital component recording
Audio Recording System: PCM digital sound
Image Sensor: 1/6 inch CCD, approx. 680,000 pixels
Tape Speed: SP: 0.74 ips, LP: 0.49 ips
Maximum Recording Time: SP: 80 min, LP: 120 min
Fast Forward/Rewind Time: 2 min. 20 sec. (with 60 min. cassette)
Lens: f=2.8-50.4, f/1.6-2.9, 18x powerzoom
Focusing System: TTL autofocus,manual
Minimum Focusing Distance: 3 ft. 3 3/8 inches
Maximum Shutter Speed: 1/2,000 sec.
Minimum Illumination: 2 lx
Recommended Illumination: More than 100 lx
Filter Diameter: 30.5 mm
Viewfinder: 0.33-inch TFT color, approx. 113,000 pixels
LCD Screen: 2.5-inch TFT color, approx. 112,000 pixels
Microphone: Stereo electret condenser mic
Dimensions: 2.1 x 3.7 x 5.5 inches
Weight: 1.1 lbs.
Warranty: Limited 1 year
