JVC GRDV800 MiniDV Camcorder

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!


Product Description From Amazon.com:

The 1/4-inch CCD sensor captures images with detailed accuracy so that images will be sharp and defined. The optical zoom magnifies up to 10 times while the digital zoom, which works by electronically enhancing the optical image, reaches up to 300 times. The digital image stabilization system keeps the picture steady and solid throughout zooms and camera shakes. You can shoot visible video at night using the night shot function, which allows the camera to shoot full-spectrum video in little or no light situations. Manual controls such as focus, exposure, and white balance give the user greater flexibility in shooting.

Digital Stills
The CCD sensor has a 1.33 megapixel rating, which creates images with resolutions of up 1600 by 1200 pixels. There are three lower quality settings (1280 x 960, 1024 by 768, and 640 by 480) that you can use to save memory. The DV800 includes an 8MB MultiMedia card and is also compatible Secure Digital memory cards.

Inputs and Outputs
The DV800 comes with the standard DV IEEE1394 port which provides a lossless connection to a PC or other DV machines, as well as a USB port for image transfer. The common RCA AV connections are used for direct viewing on a television or VHS dubbing.

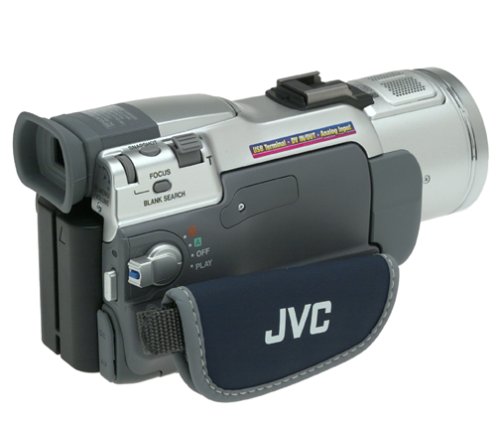

GRDV800 - Right View


Video format: MiniDV
Audio: Stereo
Maximum CCD resolution: 1,330,000 pixels
CCD size: .25 inches
Eyepiece viewfinder: Color
LCD screen size: 3.5 inches
LCD swivel: Yes
Optical zoom: 10x
Digital zoom: 300x
Autolight: No
Hot shoe for external light: Yes
Image stabilization: Yes
Infrared capability: No
Remote included: Yes
Headphone jack: Yes
Digital still capability: Yes
MPEG movie mode: Yes
Included still memory: 8 MB MMC
Preset titles: No
Custom titling: No
Programmed recording: Yes
Fade options: Yes
Special effects: Yes
Motion sensor: No
Audio sensor: No
USB streaming: Yes
IEEE1394 (Firewire) output: Yes
USB output: Yes
S-Video output: Yes
Battery type: BN-V408U 800 mAh Lithium-ion
Included in box: Camcorder, BN-V408U 800 mAh Lithium-ion, Shoulder strap, Editing Cable, USB Compatible Cable, 8MB MMC, CD-ROM software
Width: 2.95 inches
Height: 3.65 inches
Depth: 7.35 inches
1lb 6oz.
