JVC GR DVL9800 UFeatures:

Product Description:

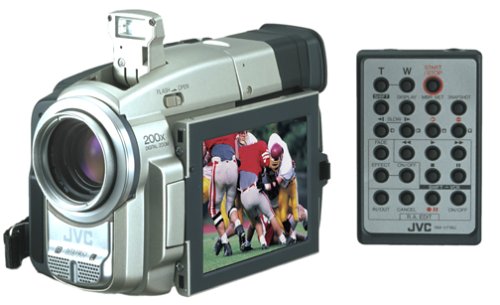

This JVC digital cybercam includes a 680,000-pixel CCD and 200,000-pixel color LCD monitor. For important close-up shots, the 200x digital zoom provides fast zooming at variable speeds by finger pressure.

Effects include classic film, strobe, slow shutter, black and white, and many more. A random assemble editing feature provides an eight-scene memory for favorite scenes as well as the ability to add special effects. The JVC GR-DVL9800U also has playback zoom, high-speed recording, and slow playback for high-quality slow-motion viewing.

The camera kit includes a serial cable, 4 MB multimedia card, and digital output link. Other accessories include a handgrip strap, audio-video output cable, editing cable, DC adapter, cleaning cloth, AC adapter/battery charger, and docking station.



Video format: MiniDV
Progressive scan CCD: Yes
Flying erase heads: No
Audio: PCM digital audio
Maximum CCD resolution: 680,000
CCD size: 0.33 inches
Eyepiece viewfinder: Yes
LCD screen size: 3.5 inches
LCD swivel: Yes
Filter diameter: f/1.8
Optical zoom (x): 10x
Digital zoom: 200x
Programmed exposure modes: 8 modes
Auto light: No
Hot shoe for external light: No
Black and white: Yes
Sepia: No
Image stabilization: Yes
Infrared capability: Yes
Remote included: Yes
Digital camera capability: Yes
Included still memory: 4 MB
Preset titles: No
Custom titling: No
Programmed recording: Yes
Fade options: white fader, black and white, fader, slide wipe, scroll wide, random, mosaic fader, door wipe, dissolve
Special effects: Classic film, strobe, slow shutter, black and white, cinema scene transitions
Motion sensor: No
Audio sensor: No
Other special features: Progressive color filter, dual-cam, analog input, random assemble editing
IEEE 1394 output: Yes
Connections: DV in/out, RS-232
S-Video output: Yes
Battery type: Lithium-ion
Included in box: AC adapter, remote control, CD-ROM software, docking station, audio/video cables, editing cables, cleaning cloth, handgrip strap, 4 MB MultiMediaCard
Width: 2.66 inches
Height: 3.75 inches
Depth: 5.46 inches
Weight: 1.54 pounds
