JVC GR-HD1 High-Definition DV camcorder

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual


Product Description From JVC:

The GR-HD1 offers true Hi-Def 720/30 progressive scan recording in MPEG2-TS (Transport Stream) format. Its large 16:9 image, packed with three times the visual information of DV, will create a new level of realism and impact when viewed on large-screen monitors or projection TVs. To accommodate a variety of video archiving and distribution needs, the GR-HD1 also supports SD 480/60p and regular DV 480/60i with separate encoding circuitry to process the image before recording on tape.

Multi-Format HD/SD/DV Recording and Viewing And when it's time to see the recordings you've made, the up-/down-converter and abundant connectors allow viewing access on everything from standard NTSC TVs to leading-edge 1080i HDTV plasma displays and professional-grade monitors. Naturally, ordinary DV 480/60i will be viewable on regular NTSC TVs.

F1.8 - F1.9 Optical Zoom Lens To make Hi-Def recording possible, JVC puts high quality up front, at the lens. With almost no variance in brightness, from F1.8 at full wide and F1.9 at full telephoto, it is able to offer the fundamental image-gathering performance a Hi-Def system requires. High-precision multi-coated all glass optics ensure low-distortion, ghost-free images with high peripheral resolution and brightness, as well as high edge-to-edge color purity across the entire zoom range.

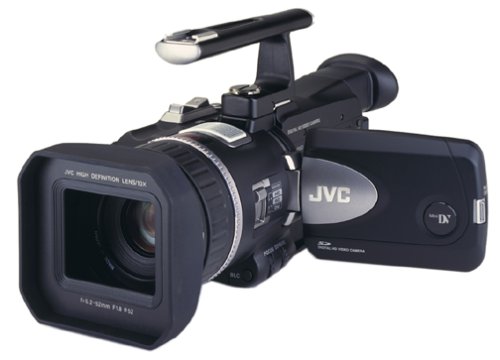

JVC GR-HD1 - Front View
JVC GR-HD1 - Rear View


Video format: MiniDV
Audio: 16-bit 2 channels, 12-bit 4 channels in DV mode
Maximum CCD resolution: 1.18 megapixels
CCD size: 1/3 inch progressive CCD
Eyepiece viewfinder: 0.44-inch color LCD viewfinder (113,000-pixel polycrystalline silicon LCD)
LCD screen size: 3.5" color LCD monitor (200,000-pixel polycrystalline silicon LCD)
LCD swivel: Yes
Optical zoom: 10x
Digital zoom: 200x
Hot shoe for external light: No
Image stabilization: Yes
Digital still capability: Yes
MPEG movie mode: No
USB streaming: No
IEEE1394 (Firewire) output: Yes
USB output: Yes
S-Video output: Yes
Width: 4.5 inches
Height: 3.9 inches
Depth: 10.7 inches
Weight: 45 ounces
