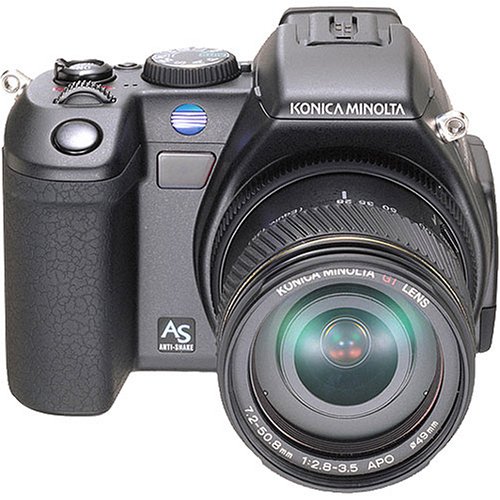

Konica Minolta Dimage A200


Number of effective pixels: 8.0 million
CCD: 2/3-type interlaced primary-color CCD; total pixels: 8.3 million
A/D conversion: 12 bit
Camera sensitivity: Auto, ISO 50, 100, 200, 400, 800 equivalents
Focal length: 7.2 to 50.8mm (35mm equivalent: 28 to 200mm)
Lens construction: 16 elements in 13 groups (includes two AD glass elements and two aspheric elements)
Maximum aperture: f2.8 to f3.5
Minimum focus distance: 1.6 feet (0.5 meters) from CCD
Macro focus range: Wide-angle position: 11.8 to 23.6 inches (30 to 60 centimeters) from CCD; 8.3 to 20 inches (21 to 51 centimeters) from front of lens; telephoto position: 9.8 to 23.6 inches (25 to 60 centimeters) from CCD; 5.1 to 19.7 inches (13 to 50 centimeters) from front of lens
Maximum magnification: 0.18x (equivalent to 0.7x in 35mm format)
Area covered at maximum magnification: 2.05 x 1.54 inches (52 x 39 millimeters)
Optical zooming control: Manual zooming ring
Filter diameter: 49mm
Viewfinder type: EVF (Electronic viewfinder)
Viewfinder LCD: 0.44-inch TFT liquid-crystal microdisplay; total pixels: 235,000 pixels
LCD monitor: 1.8-inch TFT color, vari-angle LCD monitor; total pixels: 134,000
Automatic monitor amplification: Activates in low light
Display-mode switch: Electronic-viewfinder display, external LCD-monitor display
Diopter control: -5 to +2m-1
Eye relief: 22mm at -1m-1
Shutter: CCD electronic shutter and mechanical shutter
Shutter speed range: 30 seconds to 1/3200 second (30 to 1/1600 second in S, M modes); Bulb (maximum 30 seconds)
Autofocus system: Video AF
Autofocus areas: Wide focus area, 11-point selectable, spot focus point; flex focus point control is available with the spot focus point
Focus modes: Autofocus: single-shot AF, continuous AF, full-time AF, manual focus or flex digital magnifier (FDM), automatic magnification
Focus lock: By pressing shutter-release button partway down
Metering: Multi-segment, Center-weighted, Spot (center or with Flex Focus Point)
Multi-segment metering: 256 segments
Exposure modes: Programmed AE (with program shift), aperture priority, shutter priority, manual
Digital subject programs: Portrait, Sports Action, Sunset, Night Portrait/Night View
Exposure compensation: +/- 2 EV (exposure value) in 1/3 EV steps
AE lock: With AE-lock button or by pressing the shutter-release button partway down
Flash control: Automatic and manual flash control
Flash range: Wide: approximately 1.6 to 12.5 feet (0.5 to 3.8 meters); telephoto: approximately 1.6 to 9.8 feet (0.5 to 3.0 meters) (camera sensitivity: auto)
Flash modes: Fill-flash, Red-eye Reduction, Rear Flash Sync, Slow Sync
Flash recycling time: Approximately 5 seconds
Flash compensation: +/- 2 EV in 1/3 EV steps
Flash-sync speed: All shutter speeds
External flashes: Auto-flash metering with Program/Maxxum Flash 2500 (D), 3600HS (D), 5600HS (D), Macro Twin Flash 2400, Macro Ring Flash 1200 (Macro Flash Controller is necessary)
Continuous advance: UHS continuous advance: 10 frames per second (640 x 480); high-speed continuous advance: maximum 2.3 frames per second; standard continuous advance: maximum 2.0 frames per second
Self-timer: Approximately 10 seconds, 2 seconds
Remote control: Included
Movie: Standard movie mode: maximum 15 minutes; night movie mode: maximum 15 minutes
Color modes: Natural Color (sRGB), Vivid Color (sRGB), Portrait (sRGB), Adobe RGB (ICC), Black and White (neutral and toned)
White-balance control: Automatic preset; Daylight, Tungsten, Shade, Cloudy, Flash, and Fluorescent
Sharpness settings: Three levels (Soft, Normal, Hard)
Digital effect control: Color saturation, Contrast compensation, Filter
Digital zoom: Normal mode and interpolate mode selectable; normal mode: 2x (maximum); interpolate mode: 4x (maximum)
Data imprinting: Year/month/day (format can be changed); month/day/hour/minute
Number of recorded pixels (still images): 3264 x 2448, 3264 x 2176 (in 3:2 mode), 2560 x 1920, 2080 x 1560, 1600 x 1200, 640 x 480
Number of recorded pixels (movie clips): 320 x 240 in standard and night movie modes (15 frames per second/30 frames per second selectable); 640 x 480 in standard and night movie modes (15 frames per second/30 frames per second selectable); 800 x 600 in standard and night movie (15 frames per second)
Recording media: Type I and Type II CompactFlash cards; Microdrive
Computer interface: USB; full-speed 12 MBps data transfer available with USB 2.0 compatible computer
AV output: NTSC, PAL (selected on the camera)
Batteries: One NP-800 Lithium-ion battery
What's in the box: Minolta Dimage A200 digital camera, rechargeable Lithium-ion battery (NP-800) and battery charger (BC-900), USB and AV cables, lens cap, accessory shoe cap, lens shade, wireless remote control, and CD-ROM with Dimage Viewer and ULEAD Video Studio 8 SE software
