Konica Minolta Maxxum 50

Operating manual

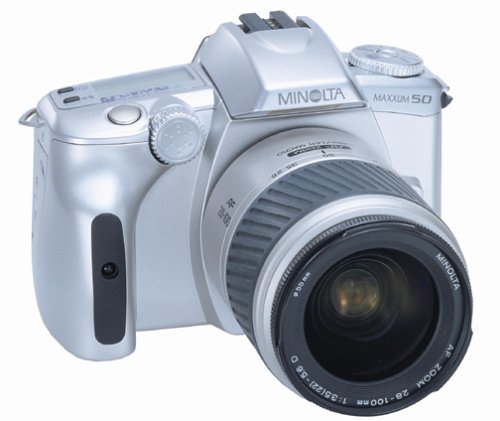

Konica Minolta Maxxum 50


Camera Type: 35mm SLR with built-in flash, autoexposure (AE) and autofocus (AF)
Film Type: 35mm
Focus mode: Autofocus/Manual focus
AF sensor: 3-point sensors with center cross-hair sensor
Predictive focus control: Yes
AF illuminator: Built-in-flash "LED"
AF Detection: TTL phase-detection system
Exposure Modes: Programed AE, Aperture priority (A mode), Shutter-speed priority (S mode), Manual mode (M mode)
Subject program selection mode: Portrait, landscape, close-up, sports action, night portrait
Metering type: TTL, 2-segment metering
Metering range: EV 4 to 20 (ISO 100, f/1.4 lens)
ISO setting: Automatic with DX-coded film: ISO 25-3200 in 1 EV increments/With flash: ISO 25-1000/Non-DX coded film: ISO is set to 25
AE-lock: Exposure is locked with focus
Flash mode: Autoflash, Autoflash with red-eye reduction, Fill flash, Fill flash with red-eye reduction, Flash cancel
Flash range: 3.3 to 13.1 feet
Shutter type: Electronically-controlled, vertical-traverse, focal-plane type
Shutter speed: 1/2000 to 30 seconds
Flash sync speed: 1/90 second or slower
Viewfinder type: Eye-level fixed roof mirror
Focusing screen: Spherical acute matte
Field of view: 90% (vertical) x 90% (horizontal)
Magnification: 0.75X (with 50mm lens focused at infinity)
Eye-relief: 0.68 inch from the eyepiece
Diopter: -1 diopter
Film transport drive modes: Single-frame advance, Continuous advance (max. 1.7 fps)
Loading: Automatic loading (Automatic advance to the first frame when back cover is closed)
Rewind: Automatic, Manual
Self-timer: 10-second delayed shutter release
Special features: IR remote-control receiver, Date/Time imprinting
Battery: Two 3 Volt-CR2 lithium batteries
Dimensaions (WxDxH): 5.31 x 3.62 x 2.62 inches
Weight: 11.8 ounces without batteries
