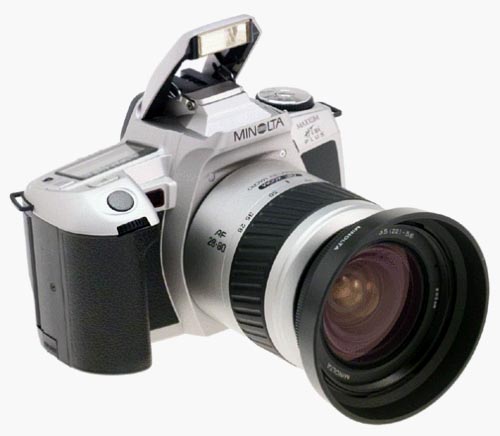

Konica Minolta Maxxum HTsi

Operating manual


Konica Minolta Maxxum HTsi


Camera type: 35mm SLR
Lens mount: Minolta A-type bayonet mount
Viewfinder: SLR roof mirror; 90-percent field of view
Shutter type: Electronically controlled, vertical-transverse, focal-plane type
Shutter speeds: 30 seconds to 1/4,000 second, bulb
Flash sync speed: 1/125 or slower
Focus type: TTL phase-detection system; multimetering with cross-hair type CCD line-sensor metering cell; autofocus and manual modes
AF sensitivity range: EV -1 to 18 (ISO 100)
Exposure modes: Portrait, landscape, close up, sports, night portrait, automatic, manual
Film-speed setting: Automatic ISO 25 to 5000 for DX-coded film; manual ISO 6 to 6400 in 1/3 EV increments
Film loading: Auto load
Drive modes: Single frame, continuous advance (2 frames per second), self timer, exposure bracketing, multiple exposure
Rewind: Auto rewind, manual start (countdown display)
Flash modes: Auto, off, fill flash
Flash recycling time: 3 seconds
Power source: Two CR2 lithium batteries
Dimensions: 5.3 x 3.5 x 2.3 inches
Weight: 12.3 ounces
