Konica Minolta Maxxum QTsi

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

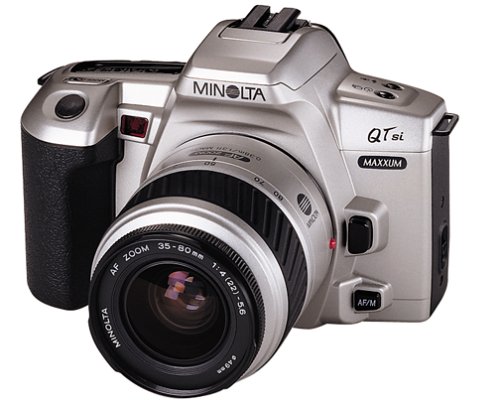

Konica Minolta Maxxum QTsi


Type: Single-lens reflex (SLR)
Film format: 35mm
Lens/zoom length: 35-80mm zoom
Shutter: Electronically controlled, vertical-traverse, focal-plane type
Shutter speed: 1/2,000 to 30 seconds
Flash sync speed: 1/90 second or slower (1/45 second or slower with wireless flash)
Flash: Built in with automatic pop-up and manual push-down
Flash modes: Auto, fill, flash off, red-eye reduction
Flash range: Covers area seen through 28mm lens with guide number of 39 feet at ISO 100; range varies with speed of film and lens
Focus method: Phase detection with continuous autofocus
Autofocus sensitivity: Range EV -1 to 18 at ISO 100
Focus range: 15 inches to infinity with 35-80mm lens
Focus lock: Yes
Metering method: TTL type with 2-segment metering and a range of EV 4 to 20 at ISO 100 and f/1.4 lens
Exposure/focus preset modes: Programmed autofocus plus portrait, landscape, close-up, sports, and night portrait modes
Autoexposure lock: Autofocus and autoexposure locked automatically by pressing shutter-release button partway down
Film speed range: ISO 25 to 5,000, recommended flash range ISO 25 to 1,000
Viewfinder: Eye-level fixed pentaprism
Focusing screen: Acute matte
Field of view: 90 percent by 90 percent
Magnification: 0.75x (with 50mm lens at infinity)
Eye relief: 16 millimeters from the eyepiece glass, 13 millimeters from eyepiece frame
Diopter: -1 diopter
Film transport: Automatic threading, auto advance to the first frame, auto frame advance, auto rewind; manual start of rewind selectable (countdown display); rewind time approximately 20 seconds (24-exposure roll)
Drive modes: Single frame, continuous advance (1 frame per second), self-timer
Self-timer: Approximately 10-second cancelable delay of shutter release, indicated by blinking LED
LCD panel: On-body LCD panel displays exposure mode, cartridge mark, film-transport signals, battery condition, self-timer operation, flash mode, red-eye reduction, wireless/remote flash, manual focus, frame counter, drive mode, and subject program indicators
Viewfinder display: Inside image area displays focus frame, outside image area displays focus signals and flash signals
Panorama: No
Battery: Uses 2 3-volt CR2 lithium batteries
Dimensions (WxHxD): 5.3 x 3.5 x 2.3 inches
Weight (without battery): 12 ounces
