Panasonic HDC-TM10K

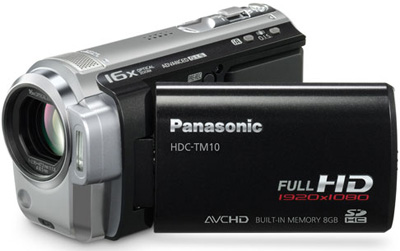

Panasonic HDC-TM10K HD Camera

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual


  • 8GB Full-HD Camcorder
  • Built-In Memory & SD Card Twin Memory
  • 16x Optical Zoom with Advanced O.I.S
  • iA Mode with AF Tracking & Touch Screen
  • Black



    Recording Media Built-in memory (8GB), SD/SDHC Memory Card
    Recording Format MPEG4-AVC/H.264 (AVCHD standard compliant)
    JPEG (Still Image)
    Image Sensor (Total) 1/6" MOS
    Image Sensor (Effective) 1.17 megapixels [16:9] [Motion Image]
    1.17 megapixels [16:9] [Still Image]
    Total Pixels 1.47 megapixels
    F Value F1.8(WIDE)
    Optical Zoom 16x
    Digital Zoom 40x-1000x
    Focal Length 2.95-47.2mm
    Filter Diameter 30.5mm
    35mm Film Camera Equivalent 44.1-706mm [16:9]
    Lens Type Panasonic
    Image Stabilizer Advanced O.I.S. with Active Mode
    Still Picture Recording:16:9 2.1 Megapixel (1920 x 1080)
    Shutter Speed: Motion Image 60i Auto Slow Shutter ON: 1/30-1/8000, OFF: 1/60-1/8000, 24P Auto Slow Shutter ON: 1/24-1/8000, OFF: 1/48-1/8000
    Shutter Speed: Still Image 1/2-1/2000, video flash: 1/2-1/500
    Minimum Illumination 9 Lux (1/30 Low Light Mode)
    1 Lux (Magic Pix)
    Standard Illumination 1400 lx
    Focus Auto/Manual
    White Balance Auto/Indoor1/Indoor2/Sunny/Cloudy/White Set
    Iris Auto/Manual
    LCD Monitor 2.7" Wide LCD (230,400 pixels)
    MagicPix Images Yes
    Simultaneous Motion Video & Still Picture Recording Yes; 2.1 M (1920 x 1080) [16:9]
    Creating Still Picture from Motion Picture 2.1 M (1920 x 1080) [16:9]
    Microphone 2-ch Stereo, Zoom Microphone
    Speaker Dynamic type
    On-Screen Display Language English, French, Spanish
    LED Video Light Yes
    Flash Yes
    Media Remaining Indication Yes
    Signal System 1080 / 60i
    Video Recording Format MPEG4-AVC/H.264 (AVCHD standard compliant)
    Recording Mode HA (17Mbps/VBR) (1920 x 1080)
    HG (13Mbps/VBR) (1920 x 1080)
    HX (9Mbps/VBR) 1920 x 1080)
    HE (6Mbps/VBR) (1440 x 1080)
    Playback Mode HA (17Mbps/VBR) (1920 x 1080)
    HG (13Mbps/VBR) (1920 x 1080)
    HX (9Mbps/VBR) 1920 x 1080)
    HE (6Mbps/VBR) (1440 x 1080)
    Audio Recording System Dolby Digital (2ch)
    Still Picture JPEG; 2.1 M (1920 x 1080) [16:9]
    Built-in SD Slot Yes
    PictBridge Compatible Yes
    DPOF Max. 999 images
    Video Component Yes
    Audio Out Yes
    AV Out Yes
    HDMI Yes (mini)
    USB 2.0 Hi-Speed
    AC Adaptor Yes
    Video Component Cable Yes
    USB Cable Yes
    AV Cable Yes
    Stylus Pen Yes
    Included Software HD Writer AE 1.5
    Rechargeable Battery Pack min. 725 mAh/Lithium-Ion
    Power Supply DC 7.2/9.3 V
    Power Consumption 5.6W
    AC Cable Yes
    DC Cable Yes
    Dimensions (H x W x D) 2.48" x 1.87" x 4.51"
    Weight 0.5 lbs
