Home : Equipment : Panasonic : Cameras : HDC : HDC-TM55K

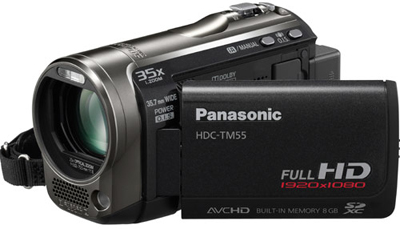

Panasonic HDC-TM55K

Panasonic HDC-TM55K HD Camera

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

  • 35.7mm Wide Lens
  • 35X Intelligent Zoom
  • Power OIS
  • Intelligent Auto with Face Recognition
  • Black
  •

    Specifications

    MEDIA
    Recording Media Built-in memory (8GB), SD/SDHC/SDXC Memory Card
    Recording Format MPEG4-AVC/H.264 (AVCHD standard compliant)
    JPEG (Still Image)
    LENS
    Image Sensor (Total) 1/4.1" MOS
    Image Sensor (Effective) Motion Image: 2.11 megapixels [16:9]
    Still Image: 2.28 megapixels [3:2]
    2.11 megapixels [16:9]
    2.32 megapixels [4:3]
    Total Pixels 3.32 megapixels
    F Value F1.8 (WIDE)
    F3.3 (TELE)
    Optical Zoom 25x
    Intelligent Zoom 35x
    Digital Zoom 60x / 1500x (The maximum value of zoom magnification)
    Focal Length 3.02-75.5mm
    35mm Film Camera Equivalent 35.7-893mm (16:9) [Motion Image]
    35.7-893mm (3:2)
    35.7-893mm (16:9)
    36.0-900mm (4:3) [Still Image]
    Lens Type Panasonic
    CAMERA
    Image Stabilizer POWER O.I.S. [Optical Image Stabilization]
    Still Picture Recording:4:3 5.0 megapixels (2592 x 1944)
    1.9 megapixels (1600 x 1200)
    0.3megapixels (640 x 480)
    Still Picture Recording:3:2 4.8 megapixels (2688 x 1792)
    1.9 megapixels (1680 x 1120)
    Still Picture Recording:16:9 4.5 megapixels (2816 x 1584)
    2.1 megapixels (1920 x 1080)
    Shutter Speed: Motion Image [60i] Auto Slow Shutter ON : 1/30-1/8000 , video flash: 1/30-1/500
    OFF : 1/60-1/8000, video flash: 1/60-1/500
    Shutter Speed: Still Image 1/2-1/2000, video flash: 1/2-1/500
    Minimum Illumination 4.0 lx (1/25 Low Light scene mode)
    1 lx (Color Night View)
    Standard Illumination 1400 lx
    Focus Auto/Manual
    White Balance Auto/Indoor1/Indoor2/Sunny/Cloudy/White Set
    Iris Auto/Manual
    Backlight Compensation Yes
    LCD Monitor 2.7" Wide LCD (230,400 pixels)
    Simultaneous Recording 4.5 megapixels (2816 x 1584) , 2.1 megapixels (1920x1080) [16:9]
    Creating Still Picture from Motion Picture 2.1 megapixels (1920 x 1080) [16:9]
    Microphone 2-ch Stereo, Zoom Microphone
    Speaker Dynamic type
    On-Screen Display Language English, French, Spanish
    LED Video Light Yes
    Flash Yes
    Media Remaining Indication Yes
    RECORDING & PLAYBACK
    Signal System 1080 / 60i
    Video Recording Format MPEG4-AVC/H.264 (AVCHD standard compliant)
    Recording Mode HA (17Mbps/VBR) (1920 x 1080)
    HG (13Mbps/VBR) (1920 x 1080)
    HX (9Mbps/VBR) 1920 x 1080)
    HE (5Mbps/VBR) (1440 x 1080)
    Playback Mode HA (17Mbps/VBR) (1920 x 1080)
    HG (13Mbps/VBR) (1920 x 1080)
    HX (9Mbps/VBR) 1920 x 1080)
    HE (5Mbps/VBR) (1440 x 1080)
    Audio Recording System Dolby Digital (2ch)
    SD CARD FEATURES
    PictBridge Compatible Yes
    JACKS
    HDMI Yes (mini)
    USB 2.0 Hi-Speed
    INCLUDED ACCESSORIES
    AC Adaptor Yes
    USB Cable Yes
    Stylus Pen Yes
    Included Software HD Writer AE 2.0
    Rechargeable Battery Pack min. 1790 mAh / Lithium-Ion
    GENERAL
    Power Supply DC3.6V/5.0V
    Power Consumption Max. 4.4W (Recording)
    Max. 7.7W (Charging)
    AV Multi Yes
    AV Multi Cable Yes
    AC Cable Yes
    DC Cable Included AC Adaptor
    Dimensions (H x W x D) 2.03" x 2.58" x 4.37"
    Weight (without battery) Approx. 258g/.57lb
