Panasonic SDR-H80r

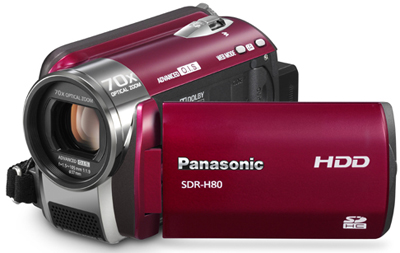

Panasonic SDR-H80R

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

Specifications

MEDIA
Recording Media: 60 GB HDD, SD/SDHC Memory Card
Recording Format: MPEG2 (Motion Image), JPEG (Still Image)
LENS
Image Sensor - Total 1/8" CCD
Image Sensor - Effective 0.38 megapixels (16:9), 0.29 megapixels (4:3)
Total Pixels 0.8 megapixels
F Value F1.9 (Wide), 5.7 (Tele)
Optical Zoom 70x
Digital Zoom 70x-100x
Super Digital Zoom 70x-3500x
Focal Length 1.5-105mm
Filter Diameter 37mm
35mm Film Camera Equivalent 45.6-3194mm (4:3), 37.3-2610mm (16:9) (Motion Image)
45.4-3180mm(4:3), 37.0-2592mm (16:9) (Still Image)
Lens Type Panasonic
CAMERA
Image Stabilizer Advanced O.I.S. (Optical Image Stabilization)
Still Picture Recording - 4:3 .3 megapixels (640 x 480)
Still Picture Recording - 16:9 .2 megapixels (640 x 360)
Shutter Speed 1/30-1/8000 (Motion Image)
1/30-1/500 (Still Picture)
Minimum Illumination 6 Lux (1/30 Low Light Mode)
2 Lux (Magic Pix)
Focus Auto/Manual
White Balance Auto/Indoor/Outdoor/White Set
Iris Auto/Manual
LCD Monitor 2.7" Wide (123,200 Dots)
MagicPix Images Yes
Microphone Stereo mic, Zoom mic.
Speaker Dynamic
On-Screen Display Languages English, French, Spanish
RECORDING & PLAYBACK
Video Recording Format MPEG2 (Motion Image)
Recording Mode XP (10Mbps/VBR), (704 x 480)
SP (5Mbps/VBR), (704 x 480)
LP (2.5Mbps/VBR), (704 x 480)
Playback Mode XP [10Mbps/VBR], [704 x 480]
SP [5Mbps/VBR], [704 x 480]
LP [2.5Mbps/VBR], [704 x 480]
Audio Recording System HDD: Dolby Digital [2ch]
SD Card: Dolby Digital [2ch]
MPEG1 Audio Layer 2
Still Picture JPEG
0.2 M [640 x 360] [16:9]
0.3 M [640 x 480] [4:3]
SD CARD FEATURES
Built-in SD Slot Yes
DPOF
PictBridge Compatible Yes
JACKS
Audio Output Yes
USB 2.0 Hi-Speed
AV Out
INCLUDED ACCESSORIES
AC Adaptor Yes
AV Cable Yes
USB Cable Yes
Software VideoCam Suite 2.0
Rechargeable Battery Pack Min. 725 mAh/Lithium-Ion
GENERAL
Power Supply DC 7.2/9.3v
Power Consumption 3.8W
AC Cable Yes
DC Cable Yes
Dimensions (H x W x D) 2.64'' x 2.09'' x 4.21''
Weight Approx. 0.66 lbs
