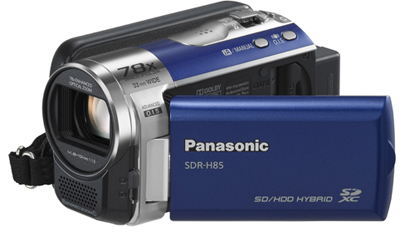

Panasonic SDR-H85A

Panasonic SDR-H85A

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

Specifications

MEDIA
Recording media HDD (80GB), SD/SDHC/SDXC Memory Card
Recording Format MPEG2, H.264/AVC [Motion Image]; JPEG (Still Image)
LENS
Image Sensor (Total) 1/8" CCD
Image Sensor (Effective) Motion Image & Still Image
0.41 megapixels (Tele) - 0.52 megapixels (Wide) [4:3]
0.38 megapixels (Tele) - 0.47megapixels (Wide) [16:9]
Total Pixels 0.8 megapixels
F Value F1.9 (Wide)
5.7 (Tele)
Optical Zoom 70x
Digital Zoom 100x / 3500x (The maximum value of zoom magnification)
Enhanced Optical Zoom 78x
Focal Length 1.48 - 104mm
35mm Film Camera Equivalent Enhanced Optical Zoom OFF:
37.4mm - 2625mm [4:3]
36.5mm - 2571mm [16:9]
Enhanced Optical Zoom ON:
33.5mm - 2625mm [4:3]
32.8mm - 2571mm [16:9]
Lens Type Panasonic
CAMERA
Image Stabilizer Advanced O.I.S. (Optical Image Stabilization)
Still Picture Recording 4:3
Still Picture Recording 16:9
.3 megapixels (640 x 480)
.2 megapixels (640 x 360)
Shutter Speed (Motion Image) Auto Slow Shutter ON : 1/30-1/8000
Auto Slow Shutter OFF : 1/60-1/8000
Shutter Speed (Still Image) Auto Slow Shutter ON : 1/30-1/8000
Auto Slow ShutterOFF : 1/60-1/8000
Minimum Illumination Minimum Illumination 5.0 lx (1/30 Low Light scean mode)
2 lx (Color Night Rec)
Standard Illumination 1400 lx
Focus Auto/Manual
White Balance Auto/Indoor1/Indoor2/Sunny/Cloudy/White Set
Iris Auto/Manual
Backlight Compensation Yes
LCD Monitor 2.7" Wide LCD (123,200 pixels)
Simultaneous Recording 0.3 megapixels (640 x 480) [4:3], 0.2 megapixels (640 x 360) [16:9]
Creating Still Picture from Motion Picture 0.3 megapixels (640 x 480) [4:3], 0.2 megapixels (640 x 360) [16:9]
Microphone Stereo mic., Zoom mic.
Speaker Dynamic type
On-Screen Display Language English, French, Spanish
Media Remaining Indication Yes
RECORDING & PLAYBACK
Signal System 525/60i
Video Recording Format MPEG2, H.264/AVC (Motion Image)
Recording Mode XP (10Mbps / VBR) , (704 x 480)
SP (5Mbps / VBR) , (704 x 480)
LP (2.5Mbps / VBR) , (704 x 480)
LXP (5Mbps / VBR) , (704 x 480)
LSP (2.5Mbps / VBR) , (704 x 480)
LLP (1.25Mbps / VBR) , (704 x 480)
Audio Recording System XP/SP/LP: HDD: Dolby Digital (2ch), SD Card: Dolby Digital (2ch), MPEG1 AudioLayer 2,
LXP/LSP/LLP: HDD / SD Card :AAC
Still Picture JPEG; 0.3 megapixels (640 x 480) [4:3], 0.2 megapixels (640 x 360) [16:9]
SD CARD FEATURES
DPOF Max. 999 images
JACKS
USB 2.0 Hi-Speed
AV Out
INCLUDED ACCESSORIES
AC Adaptor Yes
AV Cable Yes
USB Cable Yes
Software VideoCam Suite 3.0
Rechargeable Battery Pack Lithium-Ion / min. 1790 mAh
GENERAL
Power Supply DC3.6V/5.0V
Power Consumption 3.5W (Recording)
7.7W (Charging)
Dimensions (H x W x D) inches 2.52 x 2.17 x 4.22
Weight (lbs) Approx. 0.60
Weight (w/o Battery) Approx. 273g/.60lb
Dimensions (W x H x D) 2.17" x 2.52" x 4.22"
AC Cable Yes
DC Cable Included AC Adaptor
