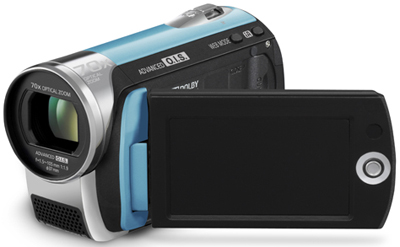

Panasonic SDR-S25A

Panasonic SDR-S25A

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Product Overview:

Optical 70x Ultra Zoom and Advanced O.I.S. (Optical Image Stabilization)
This 70x zoom lens has the power you need to take dramatic close-ups or get remarkable shots of even distant subjects. But with long-distance zoom shots, even a tiny bit of hand shake has a huge effect on picture quality. That's where optical image stabilization comes in. Panasonic's Advanced O.I.S. shifts a corrective lens as you shoot to help eliminate the effects of hand shake, so you get clear, sharp shots even at high zoom levels. It's an essential feature for getting the most out of this incredible zoom lens.

Specifications

MEDIA
Recording media SD/SDHC Memory Card
Recording Format MPEG2 (Motion Image)
JPEG (Still Image)
LENS
Image Sensor (Total) 1/8" CCD
Image Sensor (Effective) 0.38 megapixels [16:9], 0.29 megapixels [4:3] (Motion Image)
0.38 megapixels [16:9],0.29 megapixels [4:3] (Still Image)
Total Pixels 0.8 megapixels
F Value F1.9 (Wide)
5.7 (Tele)
Optical Zoom 70x
Digital Zoom Digital Zoom: 70x-100x
Super Digital Zoom: 70x-3500x
Focal Length 1.5-105mm
35mm Film Camera Equivalent 45.6-3194mm [4:3], 37.3-2610mm [16:9] (Motion Image)
45.4-3180mm[4:3], 37.0-2592mm [16:9] (Still Image)
Lens Type Panasonic
CAMERA
Image Stabilizer Advanced O.I.S. (Optical Image Stabilization)
Still Picture Recording 4:3
Still Picture Recording 16:9
.3 megapixels (640 x 480)
.2 megapixels (640 x 360)
Shutter Speed (Motion Image) 1/30-1/8000
Shutter Speed (Still Image) 1/30-1/500
Minimum Illumination 6 Lux (1/30 Low Light Mode), 2 Lux (Magic Pix)
Focus Auto/Manual
White Balance Auto/Indoor/Outdoor/White Set
Iris Auto/Manual
LCD Monitor 2.7" Wide (123,200 Dots)
MagicPix Images Yes
Microphone Stereo mic., Zoom mic.
Speaker Dynamic type
On-Screen Display Language English, French, Spanish
RECORDING & PLAYBACK
Video Recording Format 525/60i
Recording Mode XP [10Mbps/VBR], [704 x 480]
SP [5Mbps/VBR], [704 x 480]
LP [2.5Mbps/VBR], [704 x 480]
Playback Mode XP [10Mbps/VBR], [704 x 480]
SP [5Mbps/VBR], [704 x 480]
LP [2.5Mbps/VBR], [704 x 480]
Audio Recording System Dolby Digital [2ch], MPEG1 Audio Layer 2
SD CARD FEATURES
Built-in SD Slot Yes
DPOF Max. 999 images
PictBridge Compatible Yes
JACKS
Audio Output Yes
USB 2.0 Hi-Speed
AV Out
INCLUDED ACCESSORIES
AC Adaptor Yes
AV Cable Yes
USB Cable Yes
Software VideoCam Suite 2.0
Rechargeable Battery Pack min. 940 mAh/Lithium-Ion
GENERAL
Power Supply DC3.6V/5.0V
Power Consumption 3.0W
Dimensions (H x W x D) 2.56'' x 2.21'' x 4.21''
Weight (lbs) Approx. 0.50 lbs
AC Cable Yes
DC Cable Yes
