Panasonic VDR-M20PP

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

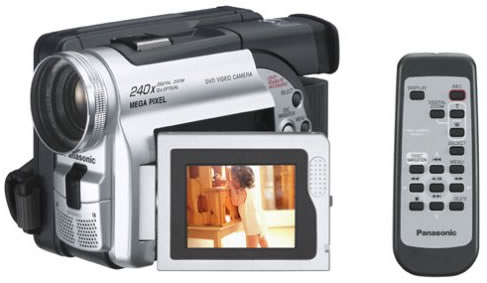

Panasonic VDR M20 PP

Specifications

CCD:1/4 inch interlaced
Total Number of Pixels:Approx. 1,100,00
Movie Pixels:Approx. 720,000
Sill Image Pixels:Approx. 1,00,000
Lens:F2.0 - 2.7, f=3/16 inches - 1 15/16 inches, Filter Diameter
Focal Length(converted to 35mm camera):Movie - Approx. 1 3/4 - 20 13/16 inches; Still Images - Approx. 1 1/2 - 17 15/16 Inches
Focus:Auto/Manual
Zoom:Optical 12x, 48x - 240x with digital zoom added
Required Minimum Illumination:12 lux (When low light is selected
Viewfinder:Black and White
LCD Monitor:2.5 inches color TFT (approx. 60,000 pixels)
Electronic Image Stabilizer:Electronic type
Shuter Speed:1/60 - 1/4000 second(movie)
Flash(Using Optional Video Flash):(Auto/On/Off)Still recording
Self-Timer Recording:Still recording only
External Micrphone Jack:External microphone jack/ 3.5mm stereo minijack
Recording Mode:Movie(with sound), Still(only with DVD-RAM disc)
Maximum Recordable Time:DVD-RAM disc(on both sides of disc) - Approx. 36 - 120 minutes(XTRA), approx. 60 minutes (FINE), approx. 120 minutes(STD); DVD-R disc(on one side of disc)- approx. 30 minutes(FINE), approx. 60 minutes(STD), approx. 30 minutes(LPCM)
Maximum number of resocrdable stills(on both sides of DVD-RAM disc):1998
Recording Format:DVD-RAM disc - Movie
Audio playback format:MPEG audio layer 2, linear PCM, Dolby AC3
Recording Medium:8 cm DVD-RAM disc(conforming to DVD-RAM Ver. 2.1 Bookk 2.1), 8cm DVD-R disc(conforming toDVD-R for general ver. 2.0)
Jacks:Audio/Video input/output x 1, S-video output x 1, External microphone input x 1, digital input/output terminal(connected to PC USB jack) x 1
Battery:Lithium
Power Consumption:Approx. 5.8 W when recording with LCD monitor off
Dimensions (W x H x D):Approx. 3 1/4 x 4 x 5 5/8 inches
Operating Temperature(Humidity):32 - 104 degrees F(less than 80 percent humidity), 32 - 86 degrees F when connected to PC
Storage Temperature:16.8 - 140 degrees F
Weight:Approx. 670 g
Provided Accessories:AC adapter, battery, AV input/output cable, infrared remore control, 2 AA batteries for remote control, lens cap, lens cap string, shoulder strap, power cable, 2 ferrite cores, DVD-RAM disc
