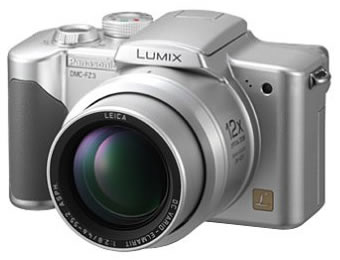

Panasonic Lumix DMC-FZ3

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

DMC-FZ3

Specifications

Camera Effective Pixels:3.1 Megapixels
Image Sensor:1/3.2", 3.34 Mega Total Pixels CCD; Primary Color Filter
Optical Zoom:12 x
Digital Zoom:4 x ; ( Max. 48 x combined with Optical Zoom)
Focal Distance:f=4.6-55.2mm (35mm Equiv.
Lens:LEICA DC VARIO-ELMARIT; 13 elements in 8 groups; (3 Aspherical Lenses / 4 Aspherical surfaces)
F Stop:F2.8 (Wide to Tele)
Optical Image Stabilizer:MEGA O.I.S. (Mode1 / Mode2)
Focusing Area:Normal
AF Metering:1 point/3 points/9 points/Spot
Focus:Auto Focus System, Normal/Macro (Dial), Continuous AF On/Off, AF Trigger (Shutter/Focus button)
AF Assist Lamp:Yes
ISO Sensitivity:Auto/80/100/200/400
White Balance:Auto/Daylight/Cloudy/Halogen/Flash/White Set; White Balance Adjustment ( 150K step, -1500 - +1500 K)* (Except for Auto set)
Exposure:Program AE, Aperture Priority AE, ; Shutter Priority AE, Manual
Exposure button:Yes
Exposure Compensation:1/3 EV step, -2 - +2 EV
Backlight Compensation:Yes (at simple mode)
Auto (AE) Bracketing:+/- 1/3 EV -1EV step, 3 frames
Light Metering:Intelligent Multiple/ Center Weighted/ Spot
Scene Mode:Dial
Shutter Speed:8-1/2000 sec
Aperture:F2.8 - F8
Self Timer:10 sec / 2sec
Auto Review:1sec/3sec
Review:1x / 4x / 8x
Picture Adjustment:Natural, Standard, Vivid
Color Effect Mode:Cool, Warm, Black & White, Sepia
Recording Format:Still Image
Recording Image Size:2016 x 1512 pixels, 1600 x 1200 pixels, 1280 x960 pixels; 640 x 480 pixels, 1920 x 1080 pixels; 320 x 240 pixels (Motion Image)
Image Quality:TIFF/ Fine / Standard
Motion Image:320 x 240 pixels 30 fps, 10 fps ; Max. recording time depends on Memory Card Capacity
Burst Shooting Mode:Full-Resolution Image, 4 frames/sec or 2 frames/sec; Full-resolution
Infinite consecutive shooting:Yes
Still Image Rec. with Audio:5 sec
Audio Dubbing:Max. 10sec
Real-time histogram:Yes
Guide line:Yes
Flip Animation:Yes
Built-in-Flash:Auto, Auto/Red-eye Reduction, Slow Sync./Red-eye Reduction, Forced On/Off; Flash output Adjustment (1/3EV step, -2 - +2 EV); ; 0.3 - 4.6m (ISO Auto)
Viewfinder:0.33" Color EVF (114K Pixels),Field of View
LCD Monitor:1.5" Polycrystalline TFT LCD Display; (114 K Pixels); Field of View
Playback mode:9-thumbnail display, zoomed playback (16x max.); Slide show (the frame-to-frame time is adjustable); Resizing (selectable number of pixels), trimming, protection, DPOF print setting
OSD language:Japanese,English,Germany,French,Italian,Spanish,Chinese
Recording Media:SD Memory Card, MultiMediaCard
Microphone:Yes
Speaker:Yes
Interface:DC Input, A/V Output (NTSC/PAL), USB
Direct Print:PictBridge
Power:Li-ion Battery Pack (7.2V, 680mAh) (Included); Battery Charger/AC Adaptor (Input
Battery life (approx.):260 pictures (CIPA Standard) / 280 pictures (with EVF);
Included Software:SD Viewe for DSC, ; ArcSoft PhotoBase, ArcSoft PhotoImpression,; ArcSoft Panorama Maker; USB Driver
Standard Accessories:Battery Charger, Battery Pack, SD Memory Card (8 MB); Lens Cap, Lens Hood, Lens Hood Adaptor, AV Cable, USB Connection Cable; Strap, CD-ROM
Dimensiones (W x H x D):108 x 68.4 x 84.8 mm (4.25 x2.69 x 3.34 inch)
Weight:Aprox. 290g. (0.64lb); Aprox.326g with Battery and SD Memory Card (0.719lb)
