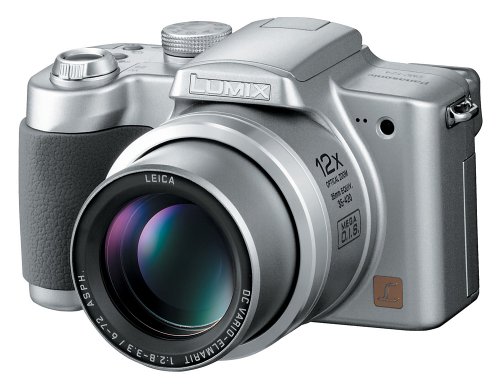

Panasonic Lumix DMC-FZ4

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

DMC-FZ4

Specifications

Camera effective pixels:4.0 megapixels
Image sensor:1/2.5-inch, 4.23 total megapixel CCD, primary color filter
Zoom:Optical
Focal distance:f=6-72mm (35mm equivalent
Lens:Leica DC Vario-Elmarit, 11 elements in 8 groups (3 aspherical lenses, 4 aspherical surfaces)
Aperture:Wide
Optical image stabilizer:MEGA O.I.S. (Mode1/Mode2)
Focusing area:Normal
AF Metering:1 point, 1-point high speed, 3-point high speed, 9-points, Spot
Focus:Autofocus System, Normal/Macro (Dial), Continuous AF On/Off, AF Trigger (Shutter/Focus button)
AF assist lamp:Yes
ISO sensitivity:Auto, ISO 64, 100, 200, 400
White balance:Auto, Daylight, Cloudy, Halogen, Flash, White Set
White balance adjustment:150K step, -1500 to +1500 K (except for Auto set)
Exposure:Program AE, Aperture Priority AE, Shutter Priority AE, Manual
Exposure button:Yes
Exposure compensation:+/- 2 EV (exposure value) in 1/3 EV steps
Backlight compensation:Yes (at simple mode)
Auto (AE) bracketing:+/- 1/3 EV -1 EV step, 3 frames
Light metering:Intelligent Multiple, Center Weighted, Spot
Scene mode:Dial
Shutter speed:8 seconds to 1/2000 second
Self-timer:10 to 2 seconds
Auto review:1 second, 3 seconds, xoom
Review:1x, 4x, 8x
Picture adjustment:Natural, Standard, Vivid
Color effect mode:Cool, Warm, Black and White, Sepia
Recording format:Still Image
Recording image size:2304 x 1728 pixels, 1600 x 1200 pixels, 1280 x960 pixels, 640 x 480 pixels, 1920 x 1080 pixels, 320 x 240 pixels (Motion Image)
Image quality:TIFF, Fine, Standard
Motion image:320 x 240 pixels, 30 frames per second (fps), 10 fps; maximum recording time depends on memory card capacity
Burst shooting mode:Full-resolution image, 4 fps or 2 fps; full-resolution
Unlimited consecutive shooting:Yes
Real-time histogram:Yes
Composition guide lines:Yes
Scene mode help screen:Yes
Auto angle detection:Yes
Flip animation:Yes
Built-in flash:Auto, Auto/Red-eye Reduction, Slow Sync/Red-eye Reduction, Forced On/Off
Flash output adjustment:+/1 2 EV (exposure value) in 1/3 EV steps; 0.3 to 4.5 meters (ISO Auto), 0.3 to 3.8 meters (ISO Auto)
Viewfinder:0.33-inch color EVF (114K pixels), field of view
LCD monitor:1.5-inch polycrystalline TFT LCD display (130K pixels); field of view
Playback mode:9-thumbnail display, zoomed playback (16x maximum), slide show (the frame-to-frame time is adjustable), resizing (selectable number of pixels), trimming, protection, DPOF print setting
OSD language:Japanese, English, German, French, Italian, Spanish, Chinese (traditional)
Recording media:SD memory card, MultiMediaCard
Speaker:Yes (only beep)
Interface:DC input, video output (NTSC/PAL), USB
Direct print:PictBridge
Power:Li-ion battery pack (7.2V, 680mAh) (included), battery charger/AC adaptor (input
Battery life (approximately):300 pictures (CIPA Standard), 320 pictures (with EVF)
Included software:SD Viewer for DSC, ArcSoft PhotoBase, ArcSoft PhotoImpression, ArcSoft Panorama Maker, USB driver
Standard accessories:Battery charger, battery pack, SD memory card (8 MB), lens cap, lens hood, lens hood adaptor, video cable, USB connection cable, strap, CD-ROM
Dimensions (W x H x D):108 x 68.4 x 84.8 millimeters (4.25 x 2.69 x 3.34 inches)
Weight:Approximately 290 grams (0.64 pounds), 326 grams with battery and SD memory card (0.719 pound)
