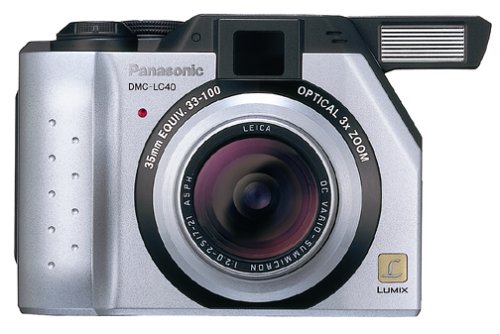

Panasonic Lumix DMC-LC40S

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!




Leica DC Vario-Summicron Lens:8 elements in 7 groups (2 aspherical lenses)
CCD (Image Sensor):1/1.76 inches, 4.01 Total Megapixel CCD, Complementary Color Filter
Resolution:2240 x 1680 pixels, 1600 x 1200 pixels, 1120 x 840 pixels, 640 x 480 pixels, 320 x 240 pixels (Motion Image Recording)
Aperture (Iris):F2.0 - 2.5
Optical Zoom:3x
Digital Zoom:2x Variable Zoom
Focus Distance:f=7-21mm (35mm equiv
Focusing Area:Normal
Focus:Auto/Macro, Spot Auto Focus Switching (Spot Mode)
ISO Sensitivity:Auto / 100 / 200 / 400
White Balance:Auto / Daylight / Cloudy / Halogen / Fluorescent / Flash / White Set
Exposure:Auto, Program AE, Shutter Priority AE, Aperture Priority AE, Scene Mode
Exposure Compensation:0.25 EV Step, +/- 2 EV
Auto (AE) Bracketing:0.25-1 EV Step, 3 or 5 Frames
Light Metering:Multiple / Spot (Spot Mode)
Shutter Speed:8 - 1/1,000 sec
Self Timer:10 seconds / 2 seconds
Image Quality Adjustment:Yes
Image Modes:TIFF/Fine/Standard
Image Formats:Still Image
Motion Image Recording with Audio:320 x 240 pixels, records up to 75 seconds per motion-image clip
Mega Burst Imaging:Yes
Still Image Recording with Audio:5 seconds
Audio Dubbing:Maximum of 10 Seconds
Built-in Flash Mode:Auto / Red Eye Auto / On / Red Eye Slow Synchro / Off
LCD Monitor:1.8" Diagonal Polycrystalline TFT Color LCD with 110k pixels and Adjustable Brightness (+/- 3 steps)
Viewfinder:Optical Viewfinder (Adjustable)
Built-in SD Card Slot:Yes
Memory Types:SD Memory Card (16MB Card Included), MultiMediaCard (Optional)
Interface:DC Input, A/V Output, USB
USB Port:Yes
Power Supply:Li-Ion Battery (1400 mAh, 7.2V), AC Adaptor (Input
ArcSoft Editing Software Package:ArcSoft PhotoBase, ArcSoft PhotoImpression, ArcSoft PhotoPrinter Pro, ArcSoft Panorama Maker
SD Viewer for DSC:Yes
Included Accessories:16MB SD Memory Card, Li-Ion Battery Pack, AC Adaptor, Lens Cap, A/V Cable, USB Cable, Strap, Software CD-ROM
Conversion Lens Compatibility:Yes
Auto Review:Image Automatically Displayed for Approx. 2 seconds
Review:4x and 8x Display
Quick Delete:Deletes Last Image while Maintaining Rec. Mode
Flash Photo Range:ISO 100
PictureStage Image Uploader:Yes
Delete:Single Page Delete / Multi Page Delete / All Delete
Dimensions (H x W x D):3.000" x 4.100" x 2.600"
Weight:0.91 lbs
