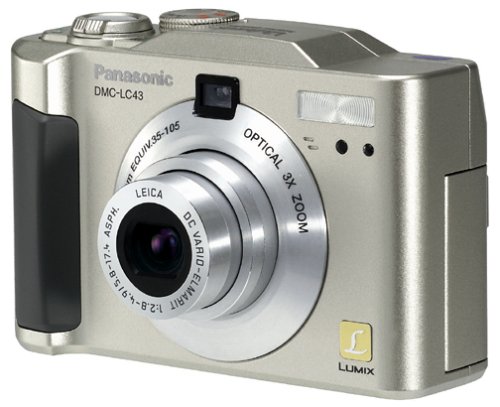

Panasonic Lumix DMC-LC43

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

DMC-LC43

Specifications

Leica DC Vario-Elmarit Lens:7 elements in 6 groups (3 aspherical lenses)
Camera Effective Pixels:4.0 Effective Megapixels
CCD (Image Sensor):1/2.5", 4.23 Total Megapixel CCD, Primary Color Filter
Resolution:2304 x 1728 pixels, 1600 x 1200 pixels, 1280 x 960 pixels, 640 x 480 pixels, 320 x 240 pixels (Motion Image Recording)
Aperture (Iris):F2.8 - 4.9
Optical Zoom:3x
Digital Zoom:3x Variable
Focus Distance:f=5.8-17.4mm (35mm equiv
Focusing Area:Normal
Focus:Auto Focus System, Normal/Macro (Dial), Spot AF On/Off (Spot Mode)
ISO Sensitivity:Auto / 50 / 100 / 200
White Balance:Auto / Daylight / Cloudy / Halogen / White Set
Exposure:Program AE
Exposure Compensation:1/3 EV Step, +/- 2 EV
Auto (AE) Bracketing:1/3 EV-1 EV Step, 3 Frames
Light Metering:Intelligent Multiple / Spot (Spot Mode)
Shooting Modes:Simple, Normal, Picture, Macro, Portrait, Landscape, Night Portrait, Moving Image
Shutter Speed:8 - 1/2,000 sec
Self Timer:10 seconds / 2 seconds
Image Quality Adjustment:Natural, Standard, Vivid
Color Effect Mode:Cool, Warm, Black and White
Image Modes:Fine/Standard
Image Formats:Still Image
Motion Image Recording with Audio:Approximately 10 frames/second @ 320 x 240 pixels(maximum recording time deponds upon memory card capacity)
Mega Burst Imaging:About 4 frames/second with full-resolution image Max. of 5 frames (Fine Mode) / 7 frames (Standard Mode)
Still Image Recording with Audio:5 seconds
Audio Dubbing:Maximum of 10 Seconds
Flash:Built-in
Built-in Flash Mode:Auto, Auto/Red Eye Redux, Slow Synchro/Red Eye Redux, Forced On/Off
Interface for Optional External Flash:No
LCD Monitor:1.5" Diagonal Polycrystalline TFT Color LCD with 114,000 pixels and Adjustable Brightness (+/- 3 steps)
Viewfinder:Optical Viewfinder
Built-in SD Card Slot:Yes
Memory Types:SD Memory Card (16MB Card Included) MultiMediaCard (Optional)
Microphone:Built-in
Speaker:Built-in
Interface:DC Input, A/V Output, USB
USB Port:Yes
Power Supply:Batteries (x2)
ArcSoft Editing Software Package:ArcSoft PhotoBase, ArcSoft PhotoImpression, ArcSoft PhotoPrinter Pro, ArcSoft Panorama Maker
SD Viewer for DSC:Yes
Included Accessories:16MB SD Memory Card, AA Ni-MH Rechargeable Batteries (x2), Battery Charger, A/V Cable, USB Cable, Strap, Software CD-ROM
Conversion Lens Compatibility:No
Auto Review:Image Automatically Displayed for Approx. 2 seconds
Delete:Single Page Delete / Multi Page Delete / All Delete
LSI Type:Venus Engine LSI
Low Pass Filter:MEGA Optical Image Stabilizer
MEGA Optical Image Stabilizer:No
Multi-Task Image Processing:Yes
Model Color:Silver
Dimensions (H x W x D):25/8 x 33/4 x 11/3 inches
Weight:0.480 pounds
